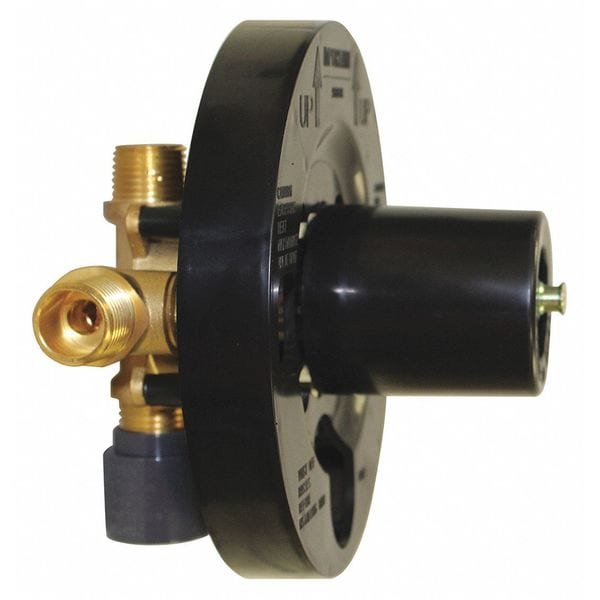

Speakman Pressure Balance Mixing Valve, 4-29/32" H CPV-12000 - main

Pressure Balance Mixing Valve, 4-29/32" H

  • Mfr # CPV-12000

  • Zoro # G5212553

product price: $123.99
/ea
Free Shipping & Returns

Key Features

Inlet Size
1/2 in
Outlet Type
Sweat/Threaded
Inlet Type
Sweat/Threaded
Max. Pressure
125 psi
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPV-12000
Zoro #
G5212553
UPC #
671252114373
Country of Origin
China

Dimensions

Inlet Size
1/2 in
Outlet Size
1/2 in
Overall Width
3 19/64 in
Overall Height
4 7/8 in
Width
3.3
Length
4.875
Height
4.9
Hose Length (In.)
0.0
Shower Head Face Diameter
0.0
Spout Height (In.)
0.0
Spout Length (In.)
0.0
Connection Size
0.5
Max Deck Thickness (In.)
0.0
Overall Length
3 5/16 in
Outlet Connection Size
1/2 in
Inlet Connection Size - Hot
1/2 in
Inlet Connection Size - Cold
1/2 in

Details

Item
Pressure Balance Valve
Outlet Type
Sweat/Threaded
Inlet Type
Sweat/Threaded
Max. Pressure
125 psi
Inlet Temperature (Cold)
40 Degrees to 85 Degrees F
Inlet Temperature (Hot)
180 Degrees F
Body Material
Brass
Temp. Range
90 Degrees to 160 Degrees F
Standards
ASME A112.18.1, ASSE 1016, CSA B125.1
For Use With
Speakman Echo RPG05-34932 Replacement Shower Valve Bonnet Cap, Speakman Echo RPG05-34937 Replacement Shower Valve Cartridge, Speakman RPG50-21029 Pressure Balancing Replacement Shower Valve Stop Assembly
Includes
Adjustable Temperature Limit Stop
Color
Black
Activation Type
Rotate Handle
Number of Showerheads
0
Drain Included
No
Escutcheon Included
No
Number of Jets
0
ADA Compliant
No
Diverter Included
No
Theme
Modern
Shower Arm Included
No
Warranty
5 Year Limited
Hose Included
No
Number of Holes
1
Vandal Resistant
No
Handles Included
No
Valve Type
Ceramic
Certifications
ASME A112.18.1/CSA B125.1 IAPMO Certified
Installation Type
Wall Mounted
Number of Handles
0
Self-Cleaning Nozzles
No
Number of Spray Patterns
0
Weight
1.76
Assembly Required
Yes
Pause Control
No
Integral Stops
No
Valve Included
Yes
Spout Reach (In.)
0.0
Massage Feature
No
Scald Guard Included
Yes
Rough-in Valve Template Included
Yes
Temperature Limit Control
Yes
Material of Construction
Brass
Collection
Echo
Connection Type
NPT and Sweat/Solder
Inlet Temperature - Maximum Cold
85 Degrees F
Operating Temperature - Maximum Outlet
160 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Inlet Temperature - Minimum Cold
40 Degrees F
Inlet Connection Type - Cold
NPT
Operating Temperature - Minimum Outlet
90 Degrees F
Outlet Connection Type
NPT, Sweat
Inlet Connection Gender - Hot
Male
Inlet Temperature - Minimum Hot
180 Degrees F
Inlet Connection Gender - Cold
Male
Inlet Connection Type - Hot
NPT
Operating Pressure - Maximum
125 psi

Description

Pressure Balance Mixing Valve, Body Material Brass, Inlet Type Sweat/Threaded, Outlet Type Sweat/Threaded, Inlet Size 1/2 in, Outlet Size 1/2 in, Temp. Range 90 Degrees to 160 Degrees F, Max. Pressure 125 psi, Overall Height 4 7/8 in, Overall Width 3 19/64 in, Inlet Temperature (Cold) 40 Degrees to 85 Degrees F, Inlet Temperature (Hot) 180 Degrees F, For Use With Showers, Includes Adjustable Temperature Limit Stop, Standards ASME A112.18.1, ASSE 1016, CSA B125.1

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
