  11. Sentinel Mark II CPV-PB-PXE Pressure Balanced Shower Valve

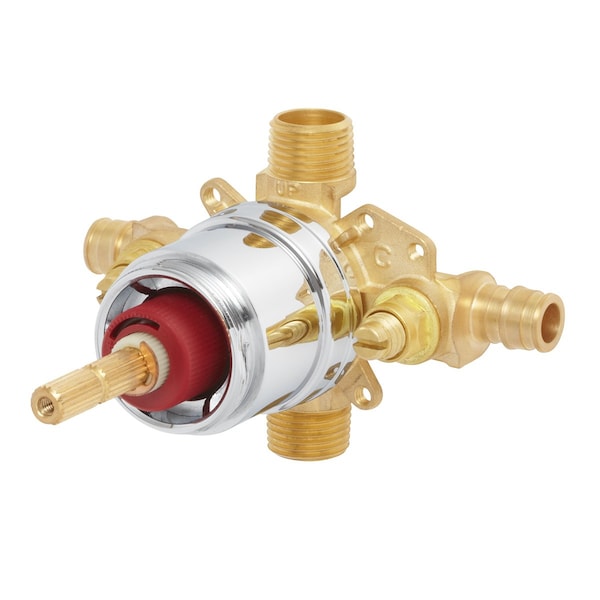

Speakman Sentinel Mark II CPV-PB-PXE Pressure Balanced Shower Valve CPV-PB-PXE - main

Sentinel Mark II CPV-PB-PXE Pressure Balanced Shower Valve

  • Mfr # CPV-PB-PXE

  • Zoro # G1898750

product price: $175.32
/ea
Free Shipping & Returns

Key Features

Body Material
Brass
Length
5.07
Weight
1.36
Color
Brass
Height
7.0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CPV-PB-PXE
Zoro #
G1898750
UPC #
671252142567
Country of Origin
China

Dimensions

Length
5.07
Height
7.0
Width
5.08
Shower Head Face Diameter
0.0
Spout Height (In.)
0.0
Spout Length (In.)
0.0
Max Deck Thickness (In.)
0.0
Hose Length (In.)
0.0
Connection Size
1/2"

Details

Item
Pressure Balance Valve
Body Material
Brass
Weight
1.36
Color
Brass
Connection Type
PEX, NPTM, and Sweat/Solder
For Use With
RPG05-1124, Speakman RPG50-21029 Pressure Balancing Replacement Shower Valve Stop Assembly
Finish
Rough Brass
Rough-in Valve Template Included
Yes
Number of Holes
1
Flow Rate (GPM)
1.75 GPM
ADA Compliant
No
Drain Included
No
Number of Showerheads
0
Shower Arm Included
No
Pause Control
No
Integral Stops
Yes
Vandal Resistant
No
Number of Handles
0
Hose Included
No
Warranty
5 Year Limited
Temperature Limit Control
Yes
Scald Guard Included
Yes
Spout Reach (In.)
0.0
Valve Included
Yes
Certifications
ASME A112.18.1/CSA B125.1 IAPMO Certified
Escutcheon Included
No
Massage Feature
No
Number of Spray Patterns
0
Theme
Commercial
Assembly Required
Yes
Material of Construction
Brass
Handles Included
No
Collection
Sentinel Mark II
Activation Type
Rotate Handle
Diverter Included
No
Installation Type
Wall Mounted
Valve Type
Pressure Balance
Self-Cleaning Nozzles
No
Number of Jets
0

Description

The Sentinel Mark II CPV-PB-PXE Pressure Balance Shower Valve has been engineered to deliver a complete and consistent shower experience. Featuring a pressure balancing and temperature regulating ceramic cartridge – this shower valve ensures water will be delivered without ever becoming scalding hot. The CPV-PB-PXE model features PEX F1960 Cold-Expansion inlet connections. pressure balance shower valves feature solid brass bodies with integral stops allowing for water shut off for valve maintenance. The valves also include temperature limit stops which allow the user to set a maximum temperature level. Sentinel Mark II Pressure Balance Shower Valves are ASSE 1016 certified to perform at flow rates as low as 1.75 GPM, making these valves ideal for use with shower heads from 2.5 to 2.0 GPM.
