Shop All Ball Valves
Spears

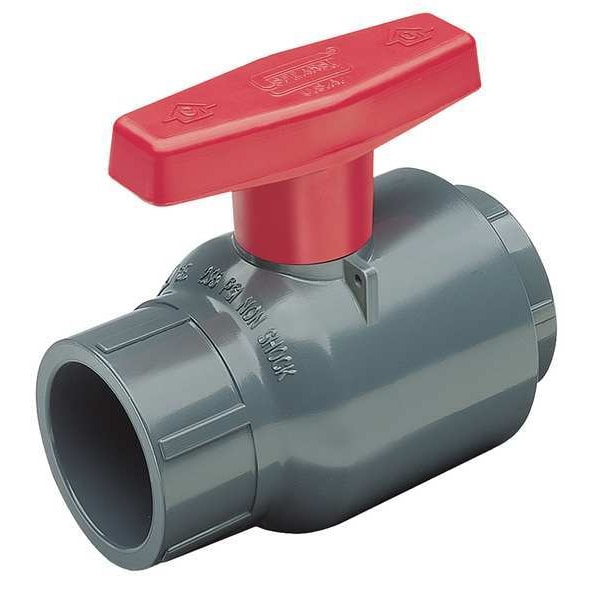

1" FNPT PVC Compact Ball Valve Inline

product price: $96.69
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Body Material PVC
  • Body Style Inline
  • Features 3-Slot
  • Temp. Range 40 Degrees to 140 Degrees F
  • Port Standard
See all product information

Product Information

  • Brand Spears
  • MFR # 2121-010
  • Zoro # G6886205
  • UPC #
    54211500026
  • Country of Origin United States
  • Category Ball Valves

Dimensions

Pipe Size 1"
Overall Length 4.25 in
Nominal Valve Size 1 in
Handle Length 3.75 in
Connection Size - Side 1 1 in
Connection Size - Side 2 1 in
Handle Height 2.81 in

Details

Body Material PVC
Body Style Inline
Features 3-Slot
Temp. Range 40 Degrees to 140 Degrees F
Port Standard
Handle Type Tee
Standards ASTM F 1970
Valve Structure 1-Piece
Ball Valve Basic Body Material Plastic
Handle Material Polypropylene
Item Compact Ball Valve
Compliance NSF 61 Annex G
Connection Type FNPT x FNPT
Seat Material EPDM
Ball Valve Product Group Manual
Max. Pressure 235 psi CWP
Ball Material PVC
Stem Material PVC
Body Seal Material EPDM
Stem Type Safe-T-Shear(R)
Seal Material EPDM
Sub-Category Synthetic Ball Valves
Valve Construction One-Piece
Operating Temperature - Maximum 140 Degrees F
Valve Body Style Straight
Valve Ways 2-Way
For Media Water
Connection Type - Side 1 NPT
Connection Type - Side 2 NPT
Ball Port Style Standard Port
Operating Temperature - Minimum 40 Degrees F
Connection Gender - Side 1 Female
Coefficient of Volume (Cv) 141
Color - Valve Body Gray
Connection Gender - Side 2 Female
Maximum Pressure - Operating 235 psi
3-A Standard Compliance Not Rated
Maximum Pressure - Combustible Gas Not Rated

Description

Manual Two-Way Ball Valve, Body Material PVC, For Media Water, Valve Construction One-Piece, Nominal Valve Size 1 in, Valve Body Style Straight, 3-A Standard Compliance Not Rated, Average Surface Roughness (Ra) Not Applicable, Maximum Pressure - Operating 235 psi, Maximum Pressure - Combustible Gas Not Rated, Ball Material PVC, Ball Port Style Standard Port, Handle Type Tee, Connection Size - Side 1 1 in, Valve Ways 2-Way, Seal Material EPDM, Seat Material EPDM, Stem Material PVC
