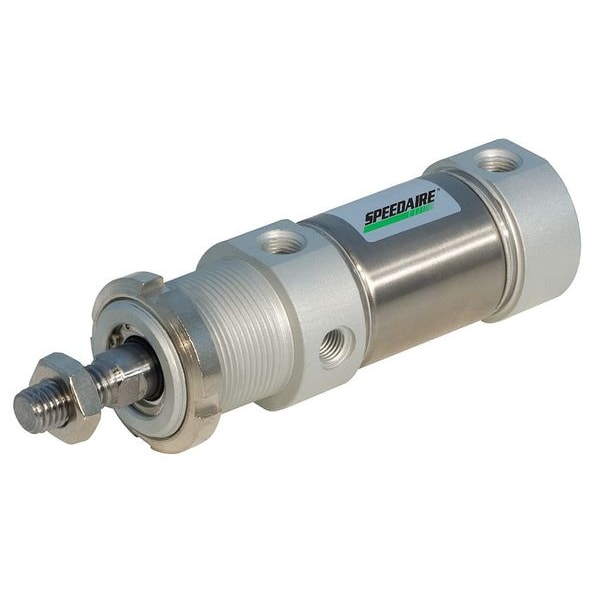

Air Cylinder, 32 mm Bore, 50 mm Stroke, ISO Double Acting (Discontinued)
- Mfr # CD76F32-50-B
- Zoro # G0232556
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
CD76F32-50-B
Zoro #
G0232556
UPC #
190735648711
Country of Origin
Czechia
Dimensions
Bore Dia.
32 mm
Rod Dia.
12 mm
Overall Length
176 mm
Rod Thread Length
20 mm
Port Size
1/8 in G
Dimension B
20mm
Dimension C
M10 x 1.5 in
Dimension E
1/8 in G
Dimension D
M30 x 1.5 in
Air Cylinder Bore Dia.
32 mm
Rod Thread Size
M10 x 1.5
Dimension A
106mm + stroke
Body Diameter
38 mm
Bore Diameter
32 mm
Inlet Size
1/8 in
Nose Mount Thread Size
M30 x 1.5
Rod Diameter
12 mm
Stroke Length
50 mm
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 32 mm, Cushion Type Rubber Cushion, Stroke Length 50 mm, Inlet Size 1/8 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Tie Rod Material Not Applicable, Body Diameter 38 mm
Restrictions
Hazardous material
