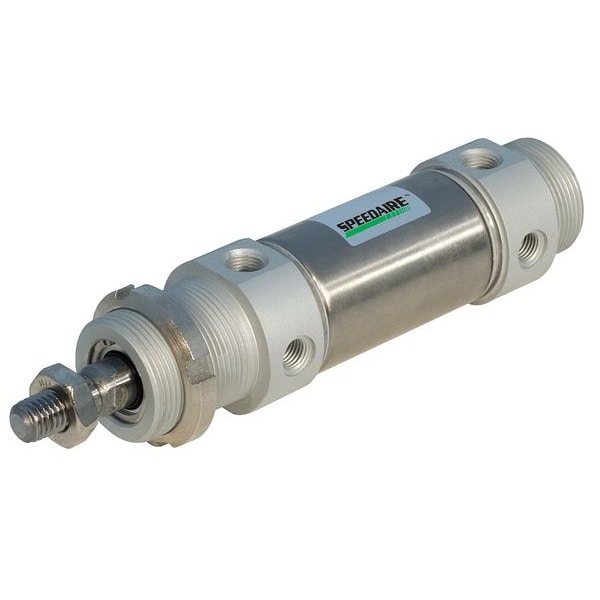

Air Cylinder, 40 mm Bore, 125 mm Stroke, ISO Double Acting (Discontinued)
- Mfr # C76E40-125
- Zoro # G0232811
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
C76E40-125
Zoro #
G0232811
UPC #
190735648193
Country of Origin
Czechia
Dimensions
Bore Dia.
40 mm
Rod Dia.
14 mm
Overall Length
299 mm
Rod Thread Length
24 mm
Port Size
1/4 in G
Dimension A
150mm + stroke
Dimension E
1/4 in G
Dimension C
M12 x 1.75 in
Air Cylinder Bore Dia.
40 mm
Rod Thread Size
M12 x 1.75
Dimension D
M38 x 1.5 in
Dimension B
24mm
Stroke Length
125 mm
End Cap Length
16 mm
Bore Diameter
40 mm
Body Diameter
50 mm
Nose Mount Thread Size
M38 x 1.5
Rod Diameter
14 mm
Inlet Size
1/4 in
Description
Air Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Magnetic Piston Non-Magnetic Piston, Mounting Type Threaded Hole, Bore Diameter 40 mm, Cushion Type Rubber Cushion, Stroke Length 125 mm, Inlet Size 1/4 in, Air Inlet Type G, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Metric, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Tie Rod Material Not Applicable, Body Diameter 50 mm
Restrictions
Hazardous material
