  9. Air Drill, Industrial, Pistol, 1/4 In.

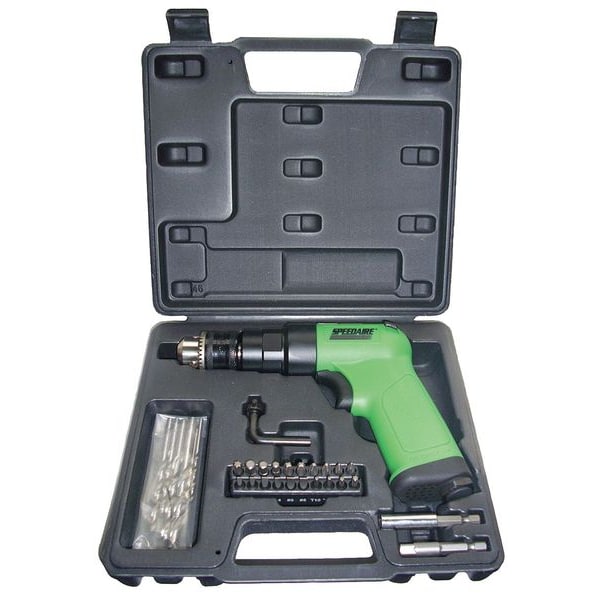

Speedaire Air Drill, Industrial, Pistol, 1/4 In. 12V744 - main

Air Drill, Industrial, Pistol, 1/4 In.

  • Mfr # 12V744

  • Zoro # G8316445

product price: $152.99
/ea
Free Shipping & Returns

Key Features

HP
0.29
HP - Air Tools
0.29
Chuck Size - Air Drills
1/4 in
CFM @ Full Load
20.0
Air Inlet
1/4 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
12V744
Zoro #
G8316445
UPC #
190735601433
Country of Origin
Taiwan, Province of China

Dimensions

Chuck Size - Air Drills
1/4 in
Min. Hose Size
3/8 in
Overall Length
8 1/4 in
Chuck Size
1/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Right Angle Length
7 1/8 in
Overall Height
6 5/8 in
Overall Width
2 in
Spindle Thread Size
3/8"-24

Details

Item
Drill
HP
0.29
HP - Air Tools
0.29
CFM @ Full Load
20.0
Air Inlet
1/4 in NPT
Drill Chuck Type - Air Drills
Keyed
Reversing
No
Required Pressure
90 psi
Free Speed
2,000 RPM
Duty Cycle - Air Tools
Industrial Duty
Torque
5.40 ft-lb
Duty
Industrial
Housing Material
Composite
Style
Pistol
Average CFM @ 15 Second Run Time
3.50
Body Style - Air Tools
Pistol
Handle Material
Composite
Throttle Type
Trigger
Item - Air Drills
Air Drill
Drill Chuck Type
Keyed
Tool Weight
1.9 lb
Gear Train
Planetary
Includes
(1) Chuck Key, (1)Plastic Case, (17) Driver Bits: PH1 2PCS, PH2 2PCS, PH3 2PCS, #3 2PCS, #4 2PCS, #5 2PCS, T10 2PCS, T15, T20, T27, (2) Adaptors, (3) Hex Bits: #4, #5, #6, (7) Drill Bits: 1/16, 3/32, 1/8, 5/32,3/16,7/32,1/4
Bearings
Ball
Variable Speed
Yes
Handle Type
Pistol Grip
Reversible
No
Torque Range
5 ft-lb to 5.4 ft-lb
Vibration Level
2.5 m/sq sec
Drilling Capacity in Steel
1/4 in
Exhaust Location
Handle
Air Pressure
90 psi
Duty Rating
Industrial Duty
Max. Torque
5.4 ft-lb
Air Consumption
3.5 cfm
Noise Level
85 dB
Drilling Capacity in Cast Iron
1/4 in
Drilling Capacity in Aluminum
1/4 in
Power Source
Air-Powered
Horsepower
0.29 hp
Drilling Capacity in Wood
1/4 in
Min. Torque
5 ft-lb
Bearing Design
Ball

Description

Drill, Pistol Body Style - Air Tools, Free Speed 2,000 RPM, Torque 5.40 ft-lb, Average CFM @ 15 Second Run Time 3.50, CFM @ Full Load 20.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Composite, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 8 1/4 in, Right Angle Length 7 1/8 in, Tool Weight 1.9 lb

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
