Speedaire

Air Drill, Industrial, Pistol, 1/4 In.

Speedaire Air Drill, Industrial, Pistol, 1/4 In. 12V744
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$143.84
  • Item: Drill
  • Item - Air Drills: Air Drill
  • HP: 0.29
See full product details
This item ships free.
Total: $143.84

Speedaire #12V744 Specifications

  • Item: Drill
  • Item - Air Drills: Air Drill
  • HP: 0.29
  • HP - Air Tools: 0.29
  • CFM @ Full Load: 20.0
  • Chuck Size - Air Drills: 1/4 in
  • Drill Chuck Type - Air Drills: Keyed
  • Air Inlet: 1/4 in NPT
  • Reversing: No
  • Min. Hose Size: 3/8 in
  • Free Speed: 2,000 RPM
  • Required Pressure: 90 psi
  • Overall Length: 8 1/4 in
  • Duty Cycle - Air Tools: Industrial Duty
  • Torque: 5.40 ft-lb
  • Duty: Industrial
  • Chuck Size: 1/4 in
  • Housing Material: Composite
  • Style: Pistol
  • Average CFM @ 15 Second Run Time: 3.50
  • Body Style - Air Tools: Pistol
  • Handle Material: Composite
  • Throttle Type: Trigger
  • Drill Chuck Type: Keyed
  • Tool Weight: 1.9 lb
  • Gear Train: Planetary

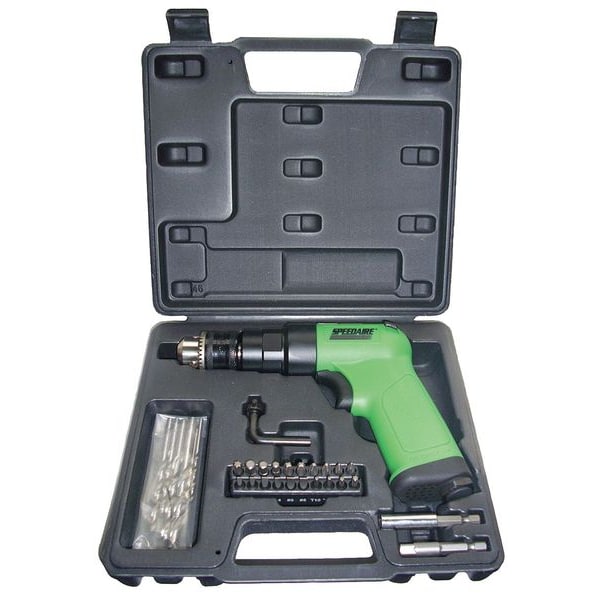

  • Includes: (1) Chuck Key, (1)Plastic Case, (17) Driver Bits: PH1 2PCS, PH2 2PCS, PH3 2PCS, #3 2PCS, #4 2PCS, #5 2PCS, T10 2PCS, T15, T20, T27, (2) Adaptors, (3) Hex Bits: #4, #5, #6, (7) Drill Bits: 1/16, 3/32, 1/8, 5/32,3/16,7/32,1/4
  • Air Inlet Size - Air Tools: 1/4 in NPT
  • Bearings: Ball
  • Variable Speed: Yes
  • Handle Type: Pistol Grip
  • Right Angle Length: 7 1/8 in
  • Overall Height: 6 5/8 in
  • Overall Width: 2 in
  • Reversible: No
  • Torque Range: 5 ft-lb to 5.4 ft-lb
  • Vibration Level: 2.5 m/sq sec
  • Drilling Capacity in Steel: 1/4 in
  • Exhaust Location: Handle
  • Air Pressure: 90 psi
  • Spindle Thread Size: 3/8"-24
  • Duty Rating: Industrial Duty
  • Max. Torque: 5.4 ft-lb
  • Air Consumption: 3.5 cfm
  • Noise Level: 85 dB
  • Drilling Capacity in Cast Iron: 1/4 in
  • Drilling Capacity in Aluminum: 1/4 in
  • Power Source: Air-Powered
  • Horsepower: 0.29 hp
  • Drilling Capacity in Wood: 1/4 in
  • Min. Torque: 5 ft-lb
  • Bearing Design: Ball
  • Country of Origin (subject to change): Taiwan, Province of China
Feedback Help us improve our product information

Description

Drill, Pistol Body Style - Air Tools, Free Speed 2,000 RPM, Torque 5.40 ft-lb, Average CFM @ 15 Second Run Time 3.50, CFM @ Full Load 20.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Composite, Variable Speed Yes, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 8 1/4 in, Right Angle Length 7 1/8 in, Tool Weight 1.9 lb
