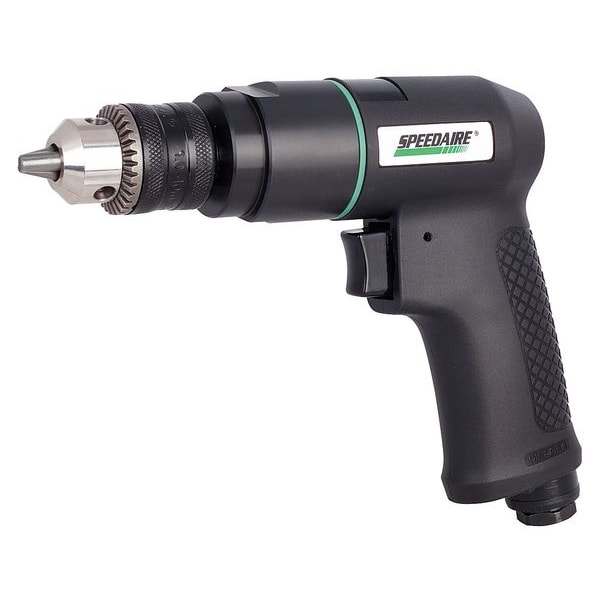

Air Drill, Key, 3/8, 2600 RPM, 16 CFM

Mfr # 21AA69
Zoro # G7451421

75.19

Key Features

0.5

HP - Air Tools

0.50

Chuck Size - Air Drills

3/8 in

CFM @ Full Load

16.0

Air Inlet

1/4 in NPT

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 21AA69
Zoro #: G7451421
UPC #: 190735605226
Country of Origin: Korea, Republic of

Dimensions

Chuck Size - Air Drills: 3/8 in
Min. Hose Size: 3/8 in
Overall Length: 7 3/8 in
Air Inlet Size - Air Tools: 1/4 in NPT
Chuck Size: 3/8 in
Overall Height: 6 in
Overall Width: 1 3/4 in
Spindle Thread Size: 3/8"-24
Air Inlet Connection Size: 1/4 in
Hose Size - Minimum: 3/8 in
Wire Rope Length: 7 3/8 in
Length: 7 3/8 in

Details

Item: Air-Powered Drill
HP: 0.5
HP - Air Tools: 0.50
CFM @ Full Load: 16.0
Air Inlet: 1/4 in NPT
Drill Chuck Type - Air Drills: Keyed
Reversing: No
Required Pressure: 90 PSI
Free Speed: 2,600 RPM
Duty Cycle - Air Tools: General Duty
Torque: 3.90 ft-lb
Style: Pistol
Includes: 3/8 in Chuck Key
Bearings: Ball
Gear Train: Planetary
Average CFM @ 15 Second Run Time: 4.00
Item - Air Drills: Air Drill
Body Style - Air Tools: Pistol
Drill Chuck Type: Keyed
Variable Speed: No
Housing Material: Composite
Duty: General
Handle Material: Composite
Tool Weight: 2.4 lb
Handle Type: Pistol-Grip
Throttle Type: Trigger
Air Pressure: 90 psi
Air Consumption: 4 cfm
Drilling Capacity in Wood: 0 in
Exhaust Location: Handle
Side to Center: 7/8 in
Chuck Material: Metal, Plastic
Bearing Design: Ball
Horsepower: 0.5 hp
Noise Level: 83 dB
Drilling Capacity in Aluminum: 0 in
Max. Torque: 3.9 ft-lb
Torque Range: 0 ft-lb to 3.9 ft-lb
Duty Rating: General Duty
Drilling Capacity in Masonry: 0 in
Drilling Capacity in Cast Iron: 0 in
Reversible: No
Vibration Level: 0.4 m/sq sec
Drilling Capacity in Steel: 0 in
Power Source: Air-Powered
Min. Torque: 0 ft-lb
Torque - Minimum: 0 ft-lb
Number of Speed Settings: 1
Application: Drilling and fastening in industiral and workshop environments
Frequency of Use: Maintenance to Light Production
Air Inlet Type: NPT
Torque - Maximum: 4 ft-lb
Tool Life: Long Lasting
Power Source - TS Only: Air-Powered
Power Source - old: Air-Powered

Description

Air-Powered Drill, Pistol Body Style - Air Tools, Free Speed 2,600 RPM, Torque 3.90 ft-lb, Average CFM @ 15 Second Run Time 4.00, CFM @ Full Load 16.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Composite, Variable Speed No, Throttle Type Trigger, Bearings Ball, Housing Material Composite, Gear Train Planetary, Overall Length 7 3/8 in, Right Angle Length Not Applicable, Tool Weight 2.4 lb
