Speedaire

Air Drill, Pistol, 90 psi, 1/2 in.

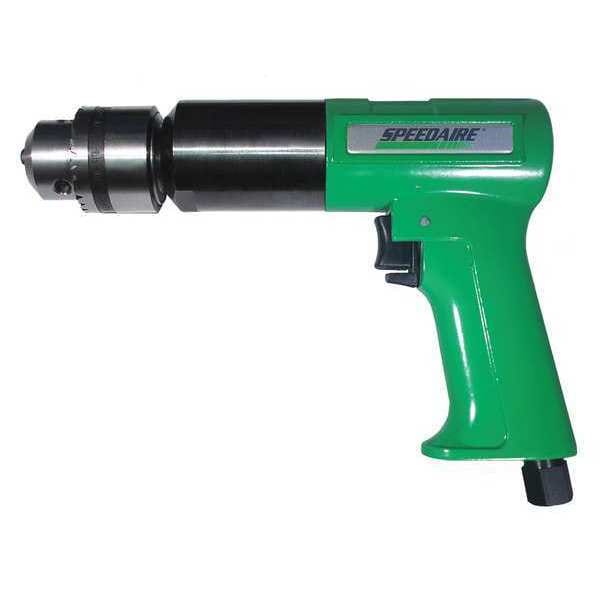

Speedaire Air Drill, Pistol, 90 psi, 1/2 in. 45YY16
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$439.96
  • Item: Drill
  • HP: 0.5
  • Item - Air Drills: Air Drill
See full product details
This item ships free.
Total: $439.96

Speedaire #45YY16 Specifications

  • Item: Drill
  • HP: 0.5
  • Item - Air Drills: Air Drill
  • HP - Air Tools: 0.50
  • CFM @ Full Load: 24.0
  • Chuck Size - Air Drills: 1/2 in
  • Drill Chuck Type - Air Drills: Keyed
  • Air Inlet: 1/4 in NPT
  • Min. Hose Size: 3/8 in
  • Reversing: Yes
  • Free Speed: 450 RPM
  • Required Pressure: 90 PSI
  • Duty Cycle - Air Tools: Industrial Duty
  • Overall Length: 8 5/8 in
  • Torque: 8.00 to 10.00 ft-lb
  • Average CFM @ 15 Second Run Time: 6.00
  • Chuck Size: 1/2 in
  • Duty: Industrial
  • Variable Speed: Yes
  • Style: Pistol
  • Tool Weight: 4 lb
  • Handle Material: Aluminum
  • Housing Material: Aluminum
  • Throttle Type: Trigger
  • Drill Chuck Type: Keyed
  • Body Style - Air Tools: Pistol
  • Gear Train: Planetary
  • Air Inlet Size - Air Tools: 1/4 in NPT
  • Handle Type: Pistol Grip
  • Drilling Capacity in Steel: 3/4 in
  • Max. Torque: 11.5 ft-lb
  • Overall Width: 1 7/8 in
  • Side to Center: 1 in
  • Air Consumption: 24 cfm
  • Drilling Capacity in Cast Iron: 5/8 in
  • Chuck Material: Metal
  • Drilling Capacity in Aluminum: 1 1/8 in
  • Vibration Level: 2.5 m/sq sec
  • Number of Speed Settings: Continuous
  • Power Source: Air-Powered
  • Spindle Thread Size: 1/2"-20
  • Application: Assembly Environments, Manufacturing, Production
  • Overall Height: 5 5/8 in
  • Drilling Capacity in Masonry: 5/8 in
  • Torque Range: 0.1 ft-lb to 11.5 ft-lb
  • Exhaust Location: Handle
  • Reversible: Yes
  • Horsepower: 0.7 hp
  • Noise Level: 85 dB
  • Drilling Capacity in Wood: 1 1/2 in
  • Air Pressure: 90 psi
  • Duty Rating: Industrial Duty
  • Min. Torque: 0.1 ft-lb
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Drill, HP - Air Tools 0.50, Chuck Size - Air Drills 1/2 in, Drill Chuck Type - Air Drills Keyed, Reversing Yes, Pistol Body Style - Air Tools, Free Speed 450 RPM, Industrial Duty Duty Cycle - Air Tools, Torque 8.00 to 10.00 ft-lb, Air Inlet Size - Air Tools 1/4 in NPT, Average CFM @ 15 Second Run Time 6.00, CFM @ Full Load 24.0, Required Pressure 90 psi, Min. Hose Size 3/8 in, Handle Material Aluminum, Variable Speed Yes, Throttle Type Trigger, Housing Material Aluminum, Gear Train Planetary
