  6. Air Dryer, Refrigerated, 400 CFM, 75 HP Max

This item is Discontinued.

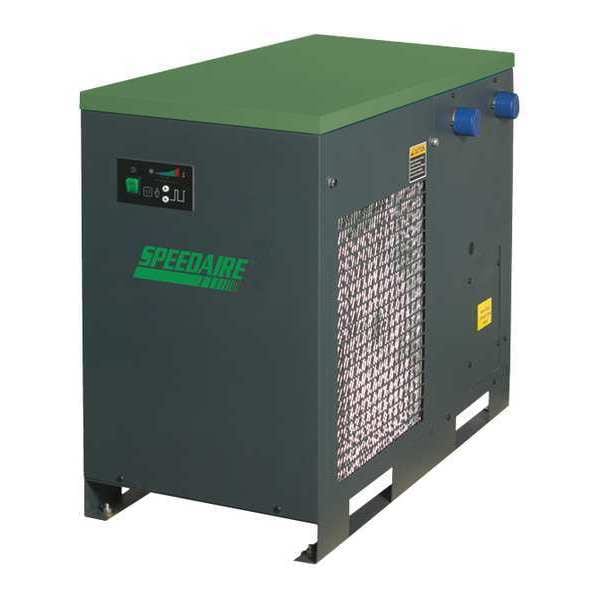

Speedaire Air Dryer, Refrigerated, 400 CFM, 75 HP Max 2DAZ9

Air Dryer, Refrigerated, 400 CFM, 75 HP Max (Discontinued)

  • Mfr # 2DAZ9
  • Zoro # G0806066
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
2DAZ9
Zoro #
G0806066
UPC #
190735610442
Country of Origin
Unknown

Dimensions

Pipe Size
2" NPT
Overall Height
30 in
Overall Width
20 in
Overall Depth
38 in
Connection Size - Air Treatment
2 in NPT

Details

Item
Compressed Air Dryer
Includes
Timed Electric Drain
CFM
400
Phase
3
Voltage
460VAC
Max. Pressure
232 psi
Refrigeration Compressor (HP)
2
ISO Class
6
Refrigerant
R-134A
Max. Inlet Temp. - Air Treatment
120 Degrees F
Full Load Amps
4.0 A
Max. Inlet Temp.
120 Degrees F
Max. Flow - Air Treatment
400 cfm
Max. Ambient Temp.
110 Degrees F
Refrigeration Compressor HP
2 hp
Dew Point
47 Degrees F
Max. Air Compressor HP
75 hp
Item - Refrigerated Air Dryers
Refrigerated Compressed Air Dryer
Features
On/Off Switch, Power On Light, Temperature Indicator
Heat Exchanger Material
Stainless Steel
Bracket Kit
No
Power
2.5 kW
ISO Class - Air Treatment
6
Max. Incoming Pressure - Air Treatment
232 psi
Input Voltage - Air Treatment
460V AC
Finish
Powder Coated
Phase - Air Treatment
Three
Refrigeration Compressor Horsepower
2 hp
Maximum Ambient Temperature
110 Degrees F

Description

Compressed Air Dryer, ISO Class 6, Voltage 460VAC, Phase Three, Power 2.5 kW, Dew Point 47 Degrees F, Features On/Off Switch, Power On Light, Temperature Indicator
