  11. Air Gearmotor, 0.32 HP, 21 cfm, 400 rpm
Shop All Air Motors
Speedaire

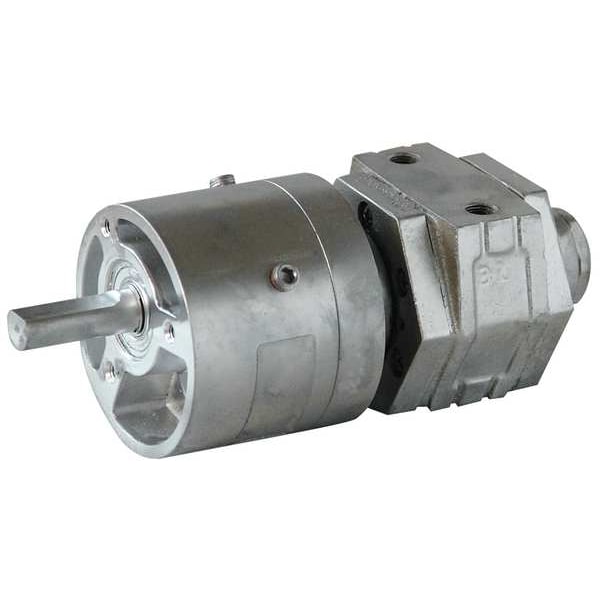

Air Gearmotor, 0.32 HP, 21 cfm, 400 rpm

product price: $362.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 49 in-lb
  • Max. Air Flow 21 cfm
  • HP 0.32 hp
  • No Load RPM 400 RPM
  • Shaft Dia. 1/2 in
See all product information

Product Information

Dimensions

Shaft Dia. 1/2 in
Port Size 1/8 in NPT
Overall Length 7 3/8 in
Shaft Length 1 3/8 in
Overall Width 2 15/16 in
Overall Height 2 15/16 in
Length Less Shaft 6 in
Outside Diameter 3 in
Shaft Diameter 1/2 in
Inlet Size 1/8 in
Manufacturers Warranty Length 1 yr

Details

Item Air Gearmotor
Running Torque @ Max. Pressure 49 in-lb
Max. Air Flow 21 cfm
HP 0.32 hp
No Load RPM 400 RPM
Mounting Face
Rotation CW/CCW
Housing Material Aluminum
Max. Air Pressure 60 psi
RPM @ Max. Torque 40 RPM
Operating Temp. Range 0 Degrees to 250 Degrees F
Finish Gray
Gear Ratio 15:1
Mount Type Face
Includes Muffler
Weight 3.97 lb
Maximum Torque 49 in-lb
Speed @ Maximum Torque 40 RPM
Air Inlet Center to Center Distance 1 3/4 in
Shaft Material Steel
Minimum Operating Pressure 20 psi
Inlet Gender Female
Housing Material Finish Painted
Motor Frame Material Cast Iron
Shaft Material Grade 42CrMo
Minimum Ambient Temperature 0 Degrees F
No Load Speed 400 RPM
Air Consumption 21 cfm
Air Inlet Type NPT
Starting Torque 5.24 ft-lb
Maximum Operating Pressure 60 psi
Output Power @ Maximum Speed 0.32 hp
Maximum Ambient Temperature 250 Degrees F
Shaft Orientation Parallel
Gear Material Steel
Number of Output Shafts 1
Seal Material Nitrile Rubber
Gear Material Grade 42CrMo
Minimum Flow Rate 4.22 cfm
Nameplate Speed 30 RPM
Housing Material Grade 42CrMo
Mounting Orientation Any Angle
System of Measurement Inch
Maximum Flow Rate 21 cfm
Number of Vanes 8

Description

Air Gearmotor, Output Power @ Maximum Speed 0.32 hp, Maximum Torque 49 in-lb, No Load Speed 400 RPM, Maximum Flow Rate 21 cfm, Shaft Diameter 1/2 in, Shaft Length 1 3/8 in, Mount Type Face, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Gear Ratio 15:1, Air Consumption 21 cfm, Housing Material Finish Painted, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 1 3/4 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed Not Applicable
