  11. Air Line Lubricator, 1/4In, 50 cfm, 250 psi
Shop All Pneumatic Lubricators
Speedaire

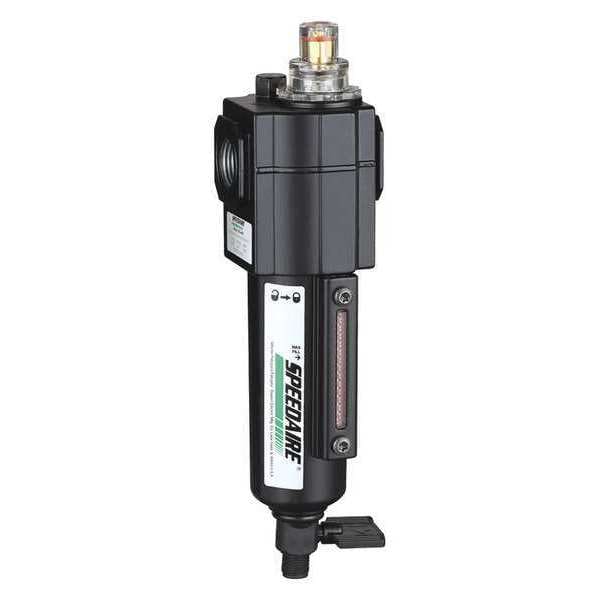

Air Line Lubricator, 1/4In, 50 cfm, 250 psi

product price: $38.35
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series Compact
  • Bowl Material Metal
  • Pipe Size 1/4 in NPT
  • Max. Flow 50 cfm
  • Max. Pressure 250 psi
See all product information

Product Information

Dimensions

Pipe Size 1/4 in NPT
Overall Height 7 7/16 in
Overall Width 2 in
Bowl Size 2.2 oz
Overall Length 1.91 in
Air Inlet Size 1/4 in
Air Outlet Size 1/4 in

Details

Item Compressed Air Lubricator
Series Compact
Bowl Material Metal
Max. Flow 50 cfm
Max. Pressure 250 psi
Dome Material Transparent Nylon
Adjustment Type Screwdriver
Body Material Zinc
Max. Pipe Run 50 ft
Drain Included Yes
Sight Dome Included Yes
Oil Feed Type Micromist
Max. Temp. 175 Degrees F
Weight 0.7 kg
Includes (1) Oil Drop Controller
Maximum Operating Temperature 175 Degrees F
For Substance Type Air
Air Inlet Type NPT
Lubricator Bowl Guard Material Zinc
Duty Rating Light Duty
Number of Air Inlets 1
For Maximum Pipe Run 50 ft
Lubricator Bowl Material Zinc
Drain Part Compatibility 114X36
Minimum Operating Temperature 5 Degrees C
Number of Air Outlets 1
Seal Material Rubber
Sight Gauge Included Yes
Air Flow Direction Left to Right
Air Outlet Type NPT
Lubricator Bowl Guard Included No
Recommended Lubricant ISO VG 32
Air Inlet Gender Female
For Fluid Type Compressed Air
Maximum Operating Pressure 250 psi
Maximum Flow Rate 50 cfm
Modular Connection No Modular Connection
Lubricator Bowl Capacity 2.2 oz
Lubricator Type Micro Mist
Air Outlet Gender Female
Adjustment Mechanism Material PE
Oil Capacity 80 ct
Adjustment Mechanism Screwdriver
System Location Air Line

Description

Compressed Air Lubricator, Lubricator Type Micro Mist, Lubricator Bowl Material Zinc, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 50 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 175 Degrees F, Adjustment Mechanism Screwdriver, Body Material Zinc, Overall Width 2 in, Series Compact, Sight Dome Included Yes, Sight Gauge Included Yes, Adjustment Mechanism Material PE, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female
