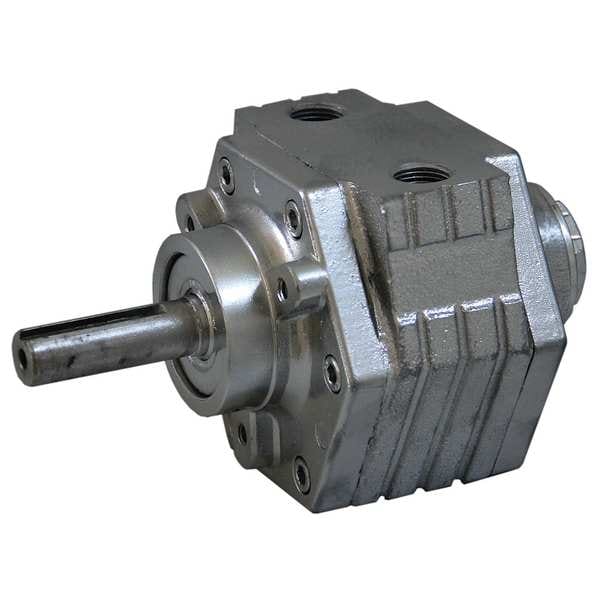

Air Motor, 1.7 HP, 78 cfm, 3000 rpm
Mfr # 22UX45
Zoro # G6209305
product price: $247.99
/ea
Free Shipping & Returns
Key Features
Running Torque @ Max. Pressure
36 in-lb
Max. Air Flow
78 cfm
HP
1.7 hp
No Load RPM
3,000 RPM
Shaft Dia.
5/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
22UX45
Zoro #
G6209305
UPC #
190735606292
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Port Size
3/8 in NPT
Overall Length
6 5/8 in
Shaft Length
1 7/8 in
Overall Height
3 3/4 in
Overall Width
4 3/8 in
Outside Diameter
4 in
Shaft Diameter
5/8 in
Manufacturers Warranty Length
1 yr
Inlet Size
3/8 in
Keyway Depth
1/8 in
Keyway Width
1/8 in
Keyway Length
1 3/8 in
Description
Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 36 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 78 cfm, Shaft Diameter 5/8 in, Shaft Length 1 7/8 in, Mount Type Face, Inlet Size 3/8 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 6.84 lb, Housing Material Grade Not Applicable
