  11. Air Motor, 0.45 HP, 20.5 cfm, 10,000 rpm
Shop All Air Motors
Speedaire

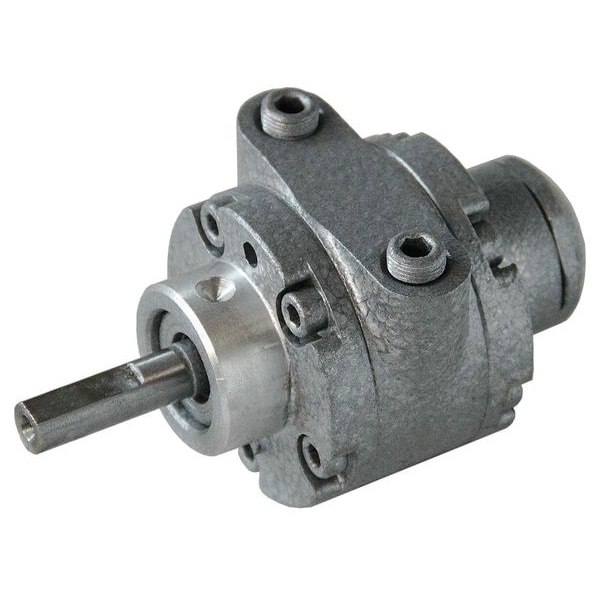

Air Motor, 0.45 HP, 20.5 cfm, 10,000 rpm

product price: $175.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 2.75 in-lb
  • Max. Air Flow 20.5 cfm
  • HP 0.45 hp
  • No Load RPM 10,000 RPM
  • Shaft Dia. 3/8 in
See all product information

Product Information

Dimensions

Shaft Dia. 3/8 in
Port Size 1/8 in NPT
Overall Length 4 1/4 in
Shaft Length 1 1/8 in
Overall Height 2 1/4 in
Overall Width 2 1/2 in
Outside Diameter 2 1/2 in
Inlet Size 1/8 in
Shaft Diameter 3/8 in
Manufacturers Warranty Length 1 yr

Details

Item Air Motor
Running Torque @ Max. Pressure 2.75 in-lb
Max. Air Flow 20.5 cfm
HP 0.45 hp
No Load RPM 10,000 RPM
Mounting Hub
Rotation CCW
RPM @ Max. Torque 650 RPM
Max. Air Pressure 100 psi
Finish Gray
Housing Material Aluminum, Cast Iron
Operating Temp. Range 0 Degrees to 250 Degrees F
Mount Type Hub
Includes Muffler
Weight 1.32 lb
No Load Speed 6,000 RPM
Maximum Torque 2.75 in-lb
Shaft Orientation Inline
Mounting Orientation Any Angle
Maximum Flow Rate 20.5 cfm
Maximum Ambient Temperature 250 Degrees F
Minimum Flow Rate 2.11 cfm
Nameplate Speed 650 RPM
Shaft Material Alloy Steel
Output Power @ Maximum Speed 0.45 hp
Air Inlet Type NPT
Inlet Gender Female
System of Measurement Inch
Shaft Material Grade 42CrMo
Minimum Operating Pressure 1.4 bar
Air Consumption 20.5 cfm
Motor Frame Material Cast Iron
Air Inlet Center to Center Distance 1 3/4 in
Maximum Operating Pressure 100 psi
Housing Material Finish Painted
Speed @ Maximum Torque 650 RPM
Minimum Ambient Temperature 0 Degrees F
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 0.45 hp, Maximum Torque 2.75 in-lb, No Load Speed 6,000 RPM, Maximum Flow Rate 20.5 cfm, Shaft Diameter 3/8 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/8 in, Air Inlet Type NPT, Rotation CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 42CrMo, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 1.32 lb, Housing Material Grade Not Applicable
