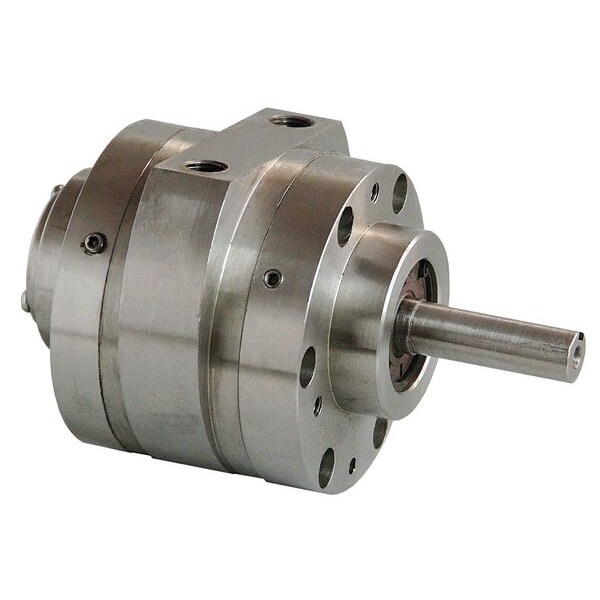

Air Motor, 1.7 HP, 78 cfm, 3000 rpm
Mfr # 22UX67
Zoro # G6191157
product price: $1,266.99
/ea
Free Shipping & Returns
Key Features
Running Torque @ Max. Pressure
36 in-lb
HP
1.7 hp
Max. Air Flow
78 cfm
No Load RPM
3,000 RPM
Shaft Dia.
5/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
22UX67
Zoro #
G6191157
UPC #
190735606513
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Port Size
1/4 in NPT
Overall Length
6 5/8 in
Overall Width
4 3/4 in
Shaft Length
2 in
Overall Height
4 in
Outside Diameter
4 in
Manufacturers Warranty Length
1 yr
Inlet Size
1/4 in
Shaft Diameter
5/8 in
Keyway Width
1/8 in
Keyway Depth
1/8 in
Keyway Length
1 1/4 in
Description
Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 36 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 78 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Face, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Stainless Steel, Shaft Material Grade 316L, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 11.03 lb, Housing Material Grade Not Applicable, Housing Material Finish Painted
