  11. Air Motor, 4 HP, 128 cfm, 3000 rpm
Shop All Air Motors
Speedaire

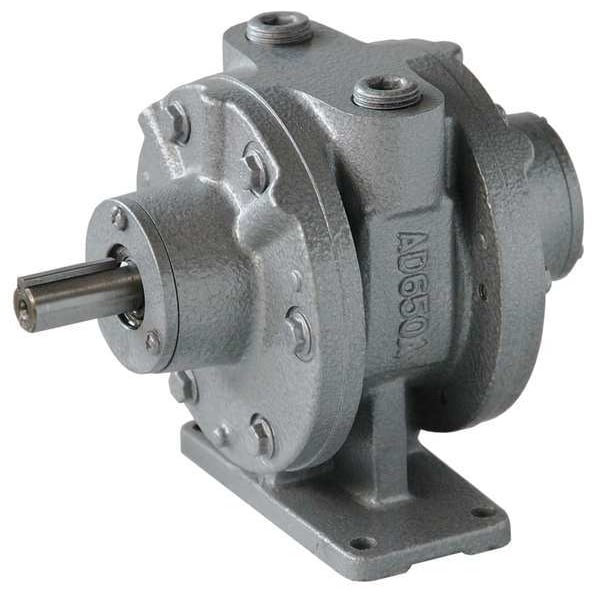

Air Motor, 4 HP, 128 cfm, 3000 rpm

product price: $294.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Running Torque @ Max. Pressure 84 in-lb
  • HP 4 hp
  • Max. Air Flow 128 cfm
  • No Load RPM 3,000 RPM
  • Shaft Dia. 5/8 in
See all product information

Product Information

Dimensions

Shaft Dia. 5/8 in
Port Size 1/2 in NPT
Overall Length 7 3/8 in
Overall Width 5 in
Keyway Length 1 1/4 in
Overall Height 5 7/8 in
Shaft Length 1 3/8 in
Outside Diameter 5 in
Keyway Depth 1/8 in
Inlet Size 1/2 in
Shaft Diameter 5/8 in
Keyway Width 1/4 in
Manufacturers Warranty Length 1 yr

Details

Item Air Motor
Running Torque @ Max. Pressure 84 in-lb
HP 4 hp
Max. Air Flow 128 cfm
No Load RPM 3,000 RPM
Mounting Foot
Rotation CW/CCW
Includes Muffler
Operating Temp. Range 0 Degrees to 250 Degrees F
RPM @ Max. Torque 300 RPM
Max. Air Pressure 100 psi
Finish Gray
Housing Material Aluminum, Cast Iron
Mount Type Foot
Weight 16.98 lb
Air Consumption 128 cfm
Maximum Flow Rate 128 cfm
No Load Speed 3,000 RPM
Inlet Gender Female
Housing Material Finish Painted
Output Power @ Maximum Speed 4 hp
Nameplate Speed 300 RPM
Maximum Operating Pressure 100 psi
Minimum Operating Pressure 1.4 bar
System of Measurement Inch
Minimum Flow Rate 12.66 cfm
Mounting Orientation Any Angle
Maximum Torque 84 in-lb
Air Inlet Center to Center Distance 2 3/4 in
Keyway Type Flat Key
Motor Frame Material Cast Iron
Maximum Ambient Temperature 250 Degrees F
Shaft Material Grade 40Cr
Minimum Ambient Temperature 0 Degrees F
Air Inlet Type NPT
Shaft Orientation Inline
Speed @ Maximum Torque 300 RPM
Shaft Material Steel
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 128 cfm, Shaft Diameter 5/8 in, Shaft Length 1 3/8 in, Mount Type Foot, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/4 in, Weight 16.98 lb, Housing Material Grade Not Applicable
