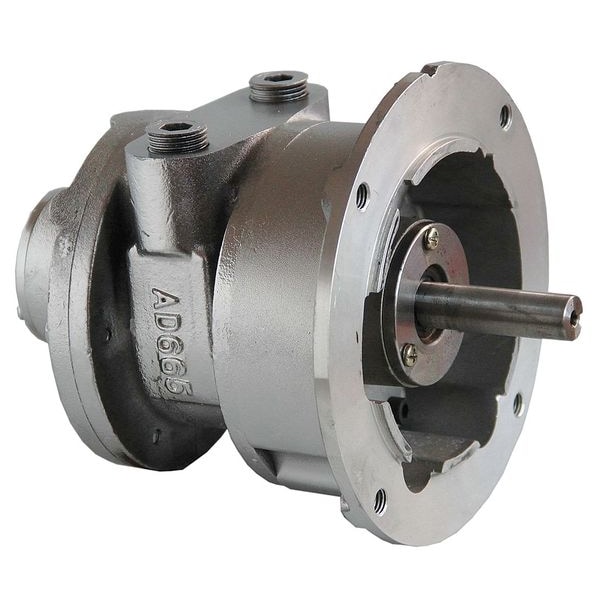

Air Motor, 4 HP, 128 cfm, 3000 rpm
Mfr # 22UX49
Zoro # G6077303
product price: $326.99
/ea
Free Shipping & Returns
Key Features
Running Torque @ Max. Pressure
84 in-lb
Max. Air Flow
128 cfm
HP
4 hp
No Load RPM
3,000 RPM
Shaft Dia.
5/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
22UX49
Zoro #
G6077303
UPC #
190735606339
Country of Origin
China
Dimensions
Shaft Dia.
5/8 in
Port Size
1/2 in NPT
Overall Length
8 1/8 in
Shaft Length
2 in
Overall Height
6 1/2 in
Overall Width
6 1/2 in
Outside Diameter
5 in
Keyway Depth
1/8 in
Manufacturers Warranty Length
1 yr
Keyway Length
1 3/8 in
Inlet Size
1/2 in
Shaft Diameter
5/8 in
Keyway Width
1/8 in
Description
Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 128 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Flange, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Aluminum, Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 15.44 lb, Housing Material Grade Not Applicable
