Speedaire

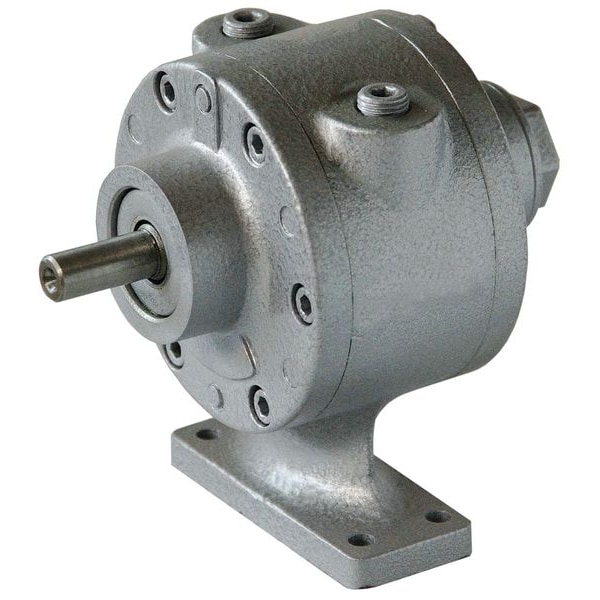

Air Motor, 1.7 HP, 78 cfm, 3000 rpm

Speedaire Air Motor, 1.7 HP, 78 cfm, 3000 rpm 22UX73
Tap to zoom
Hover or click to zoom
$195.39
  • Item: Air Motor
  • Running Torque @ Max. Pressure: 36 in-lb
  • Max. Air Flow: 78 cfm
See full product details
This item ships free.
Total: $195.39

Speedaire #22UX73 Specifications

  • Item: Air Motor
  • Running Torque @ Max. Pressure: 36 in-lb
  • Max. Air Flow: 78 cfm
  • HP: 1.7 hp
  • No Load RPM: 3,000 RPM
  • Shaft Dia.: 1/2 in
  • Mounting: Foot
  • Port Size: 1/4 in NPT
  • Rotation: REV
  • Overall Length: 5.88 in
  • Finish: Gray
  • Keyway Length: 1.0 in
  • Overall Width: 3.74 in
  • Housing Material: Cast Iron and Aluminum
  • Overall Height: 5.35 in
  • Operating Temp. Range: 0 Degrees to 250 Degrees F
  • Max. Air Pressure: 100 psi
  • Shaft Length: 1.11 in
  • RPM @ Max. Torque: 300 RPM
  • Product Type: Air Motor
  • Country of Origin (subject to change): China

Description

Air Motor, 1.7 hp HP, Running Torque @ Max. Pressure 36.0 in-lb, 78 cfm Max. Air Flow, No Load RPM 3,000 RPM, Shaft Dia. 1/2 in, Shaft Length 1.11 in, Foot Mounting, Port Size 1/4 in NPT, REV Rotation, Housing Material Cast Iron and Aluminum, Gray Finish, 300 RPM @ Max. Torque, Max. Air Pressure 100 psi, Keyway Length 1.0 in, Overall Length 5.88 in, Overall Width 3.74 in, Overall Height 5.35 in, 0 Degrees to 250 Degrees F Operating Temp. Range
