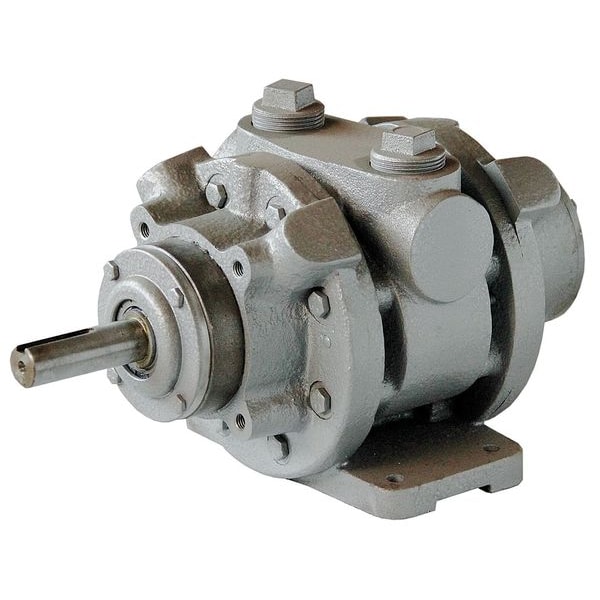

Air Motor, 9.5 HP, 280 cfm, 2000 rpm
Mfr # 22UX52
Zoro # G6069095
product price: $810.99
/ea
Free Shipping & Returns
Key Features
Running Torque @ Max. Pressure
290 in-lb
HP
9.5 hp
Max. Air Flow
275 cfm
No Load RPM
2,000 RPM
Shaft Dia.
1 1/8 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
22UX52
Zoro #
G6069095
UPC #
190735606360
Country of Origin
China
Dimensions
Shaft Dia.
1 1/8 in
Port Size
1-1/4 in NPT
Overall Length
14 1/8 in
Overall Width
8 in
Shaft Length
2 1/2 in
Overall Height
7 1/4 in
Outside Diameter
7 1/4 in
Inlet Size
1 1/4 in
Keyway Length
2 in
Manufacturers Warranty Length
1 yr
Keyway Width
1/4 in
Keyway Depth
1/4 in
Shaft Diameter
1 1/8 in
Description
Air Motor, Output Power @ Maximum Speed 9.5 hp, Maximum Torque 290 in-lb, No Load Speed 2,000 RPM, Maximum Flow Rate 275 cfm, Shaft Diameter 1 1/8 in, Shaft Length 2 1/2 in, Mount Type Face, Foot, Inlet Size 1 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 40Cr, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/4 in, Weight 69.9 lb, Housing Material Grade Not Applicable
