Speedaire

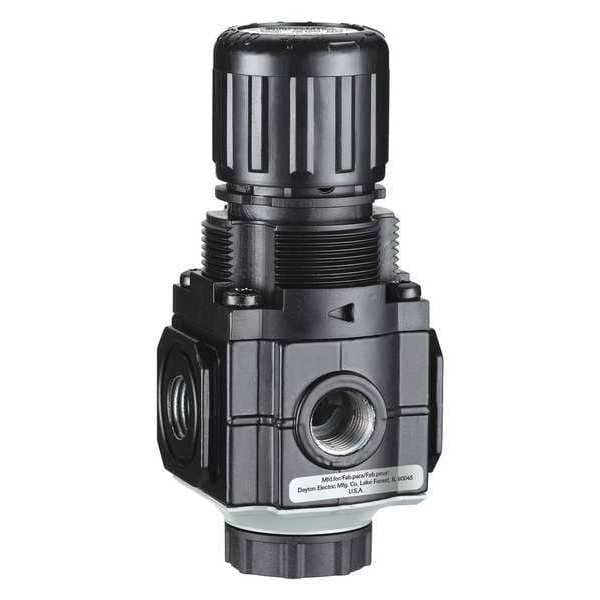

Air Regulator, 1/4 In. NPT, 90 cfm, 300 psi

product price: $27.59
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Adjustment Knob Nonrising
  • Adjustment Range (Regulators) 5 to 150 psi
  • Pipe Size (Regulators) 1/4"
  • Max. Temp. - Regulators 150 Degrees F
  • Overall Width - Regulators 1.97 in
See all product information

Product Information

Dimensions

Pipe Size (Regulators) 1/4"
Overall Width - Regulators 1.97 in
Overall Width (Regulators) 1.97"
Overall Height (Regulators) 4.19"
Overall Height - Regulators 4.19 in
Pipe Size - Regulators 1/4 in
Height 4.19"
Overall Width 2 in
Overall Height 4 3/16 in
Air Inlet Size 1/4 in
Pressure Gauge Port Size 1/8 in
Air Outlet Size 1/4 in

Details

Item Compressed Air Regulator
Adjustment Knob Nonrising
Adjustment Range (Regulators) 5 to 150 psi
Max. Temp. - Regulators 150 Degrees F
Compressed Air Regulator Product Grouping General Purpose Air Regulator
Max. Flow - Regulators 90 cfm
Max. Inlet Pressure - Regulators 300 psi
Valve Design Balanced
Body Material Aluminum
Max. Temp. (Regulators) 150 Degrees F
Gauge Port 1/8 in NPT
Max. Inlet Pressure (Regulators) 300 psi
Adjustment Range - Regulators 5 to 150 psi
Max. Flow (Regulators) 90 cfm
Series Compact
Type Modular
Maximum Operating Pressure 300 psi
Pressure Gauge Included No
Air Outlet Gender Female
Adjustment Mechanism Nonrising
Air Inlet Type NPT
Maximum Flow Rate 90 cfm
Maximum Operating Temperature 150 Degrees F
Air Outlet Type NPT
Pressure Gauge Port Type NPT
Air Inlet Gender Female

Description

Compressed Air Regulator, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 90 cfm, Maximum Operating Pressure 300 psi, Maximum Operating Temperature 150 Degrees F, Pressure Gauge Included No, Adjustment Mechanism Nonrising, Overall Width 2 in, Series Compact, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 1/4 in, Air Outlet Type NPT, Body Material Aluminum
