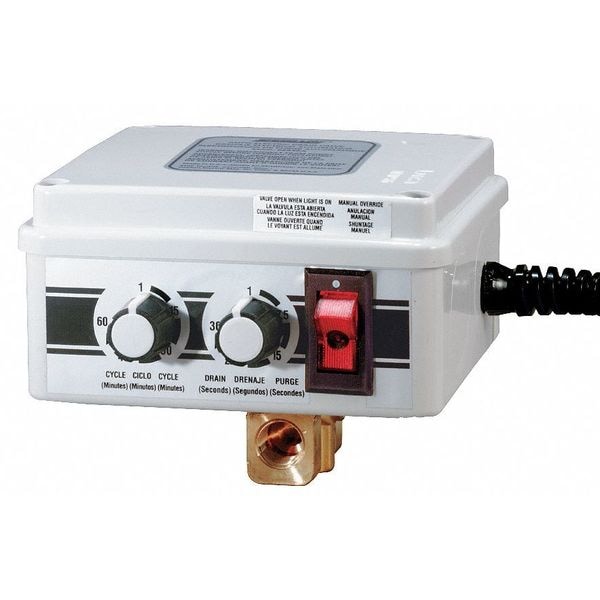

Auto Drain Valve, 115V, 1/4 In., 4.0 gpm

SPEEDAIRE |Zoro #: G0973576|Mfr #: 6Z948

$181.15 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0973576 Mfr #: 6Z948
Item: Timed Electric Auto Drain ValveDrain Size: 1/4"
Amps AC: 0.25Adjustable Drain Cycle: 1 min. to 60 min.
Voltage: 115VHz: 60
Enclosure: NEMA 1Includes: 6 ft. Heavy Duty Grounded Power Cord, Y Strainer
Overall Width: 3-5/16"Overall Height: 3-1/4"
Purge Time: 1 sec. to 30 sec.Body Material: Cycolac T-31445
Drain Rate: 4.0 gpmOverall Depth: 4-3/16"
Max. Pressure: 200 psiOperating Temp. Range: 35 Degrees to 165 Degrees F
Pipe Size: 1/4" NPTCountry of Origin (subject to change): United States

Product Description

Timed Electric Auto Drain Valve, Pipe Size 1/4 In. NPT, Drain Size 1/4 In., Drain Rate 4.0 gpm, Adjustable Drain Cycle 1 min. to 60 min., Purge Time 1 sec. to 30 sec., Voltage 115V, Max. Pressure 200 psi, Operating Temp. Range 35 Degrees to 165 Degrees F, Hz 60, Amps AC 0.25, Enclosure NEMA 1, Body Material Cycolac T-31445, Overall Height 3-1/4 In., Overall Width 3-5/16 In., Overall Depth 4-3/16 In., Includes 6 ft. Heavy Duty Grounded Power Cord, Y Strainer
