Speedaire

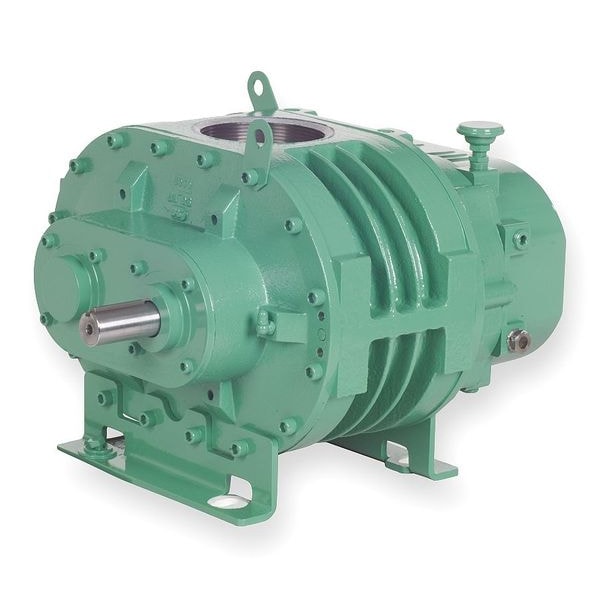

Blower/Vacuum Pump, 0.21 cu ft/Rev

product price: $4,669.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Inlet Dia. 4 in (F)NPT
  • Outlet Dia. 4 in (F)NPT
  • Displacement 2.52 cu in/rev
  • Max. Pressure 13 psi
  • Max. Vacuum 16.0 in Hg
See all product information

Product Information

Dimensions

Inlet Dia. 4 in (F)NPT
Outlet Dia. 4 in (F)NPT
Shaft Dia. 1.125 in
Overall Width 18.38 in
Keyway Length 2 in
Overall Depth 15.37 in
Keyway Width 1/4 in
Overall Height 11.94 in
Shaft Length 2 1/2 in
Shaft Diameter 1 1/8 in
Inlet Size 4 in
Outlet Size 4 in

Details

Displacement 2.52 cu in/rev
Max. Pressure 13 psi
Max. Vacuum 16.0 in Hg
RPM Range 764 to 2850
CFM Range 209 to 542
HP Required 4.5 hp - 36.9 hp
Standards ISO 9001
Item Positive Displacement Blower
Maximum Vacuum 16 in Hg
Maximum Air Flow 542 cfm
Minimum Air Flow 209 cfm
Outlet Type NPT
Configuration H-RHC
Maximum Power Required 36.9 hp
Outlet Gender Female
Duty Cycle Continuous
Inlet Type NPT
Inlet Gender Female
Minimum Power Required 4.5 hp
Maximum Speed 2,850 RPM
Maximum Operating Pressure 13 psi
Minimum Speed 764 RPM

Description

Positive Displacement Blower, Configuration H-RHC, Inlet Size 4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 4 in, Outlet Type NPT, Outlet Gender Female, Displacement 2.52 cu in/rev, Maximum Operating Pressure 13 psi, Maximum Vacuum 16 in Hg, Maximum Speed 2,850 RPM, Minimum Speed 764 RPM, Maximum Air Flow 542 cfm, Minimum Air Flow 209 cfm, Maximum Power Required 36.9 hp, Minimum Power Required 4.5 hp, Shaft Diameter 1 1/8 in
