Wilkerson

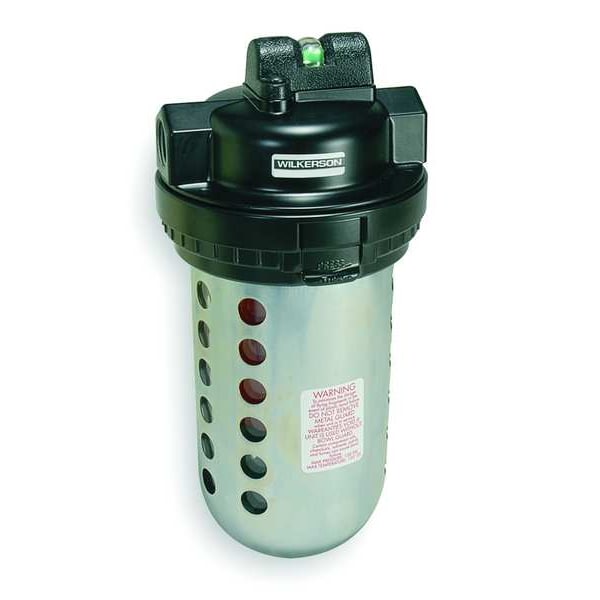

Pneumatic Oil Filter, 3/4 In. NPT, 140 cfm

Wilkerson Pneumatic Oil Filter, 3/4 In. NPT, 140 cfm M30-06-S00
Tap to zoom
Hover or click to zoom
$230.99
  • Item - Air Filters: Oil Removal Filter
  • Filter Rating - Air Treatment: 0.01 micron
  • Connection Size - Air Treatment: 3/4 in NPT
See full product details
This item ships free.
Total: $230.99

Wilkerson #M30-06-S00 Specifications

  • Item - Air Filters: Oil Removal Filter
  • Filter Rating - Air Treatment: 0.01 micron
  • Connection Size - Air Treatment: 3/4 in NPT
  • Max. Incoming Pressure - Air Treatment: 150 psi
  • Max. Flow - Air Treatment: 140 cfm
  • Bowl Material - Air Treatment: Polycarbonate with Guard
  • Size - Air Treatment: Jumbo
  • Bowl Size - Air Treatment: 26.0 oz
  • For Removal Of: Oil
  • Drain Port Size: 3/4 in
  • Max. Temp.: 125 Degrees F
  • Item: Pneumatic Oil Filter
  • Drain Type: Manual
  • Overall Height: 10.8 in
  • Includes: Differential Pressure Indicator
  • Overall Width: 4.8 in
  • Air Inlet Size: 3/4 in
  • Body Material: Zinc
  • Series: M30
  • Number of Air Inlets: 1
  • Overall Depth: 4 5/8 in
  • Air Outlet Type: NPT
  • Filter Bowl Capacity: 2 oz
  • Filter Type: Coalescing
  • Number of Air Outlets: 1
  • Drain Included: Yes
  • Seal Material: Fluorocarbon
  • Air Outlet Size: 3/4 in
  • Maximum Operating Temperature: 125 Degrees F
  • Filter Type (Broad from Filter Rating): Coalescing
  • Air Inlet Type: NPT
  • Maximum Flow Rate: 173 cfm
  • Filter Element Material: Borosilicate Cloth
  • System Location: Air Line
  • Inlet Size: 3/4 in NPT
  • Filter Type (Broad from Filter Type): Coalescing
  • For Substance Type: Oil Aerosol
  • Weight: 5.4 lb
  • For Fluid Type: Oil
  • Minimum Operating Temperature: 32 Degrees F
  • Filter Bowl Guard Included: Yes
  • Maximum Operating Pressure: 150 psi
  • ISO Class: 1
  • Pressure Drop: 3 psid
  • Filter Bowl Material: Plastic
  • Country of Origin (subject to change): United States

Description

Pneumatic Oil Filter, Filter Rating - Air Treatment 0.01 micron, Connection Size - Air Treatment 3/4 in NPT, Max. Incoming Pressure - Air Treatment 150 psi, Max. Flow - Air Treatment 140 cfm, Bowl Material - Air Treatment Polycarbonate with Guard, Size - Air Treatment Jumbo, Bowl Size - Air Treatment 26.0 oz, Max. Temp. 125 Degrees F, Drain Port Size 3/4 in, Manual Drain Type, Overall Height 10.8 in, Overall Width 4.8 in, Includes Differential Pressure Indicator
