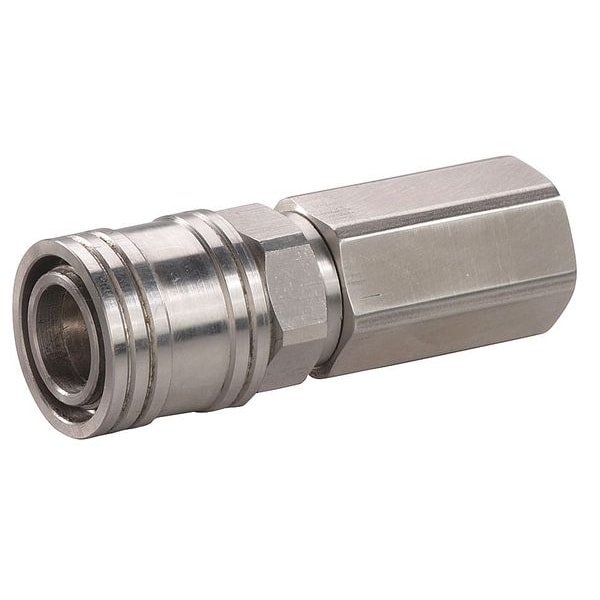

Coupler Body, (F)NPT, 1/4,304 SS
- Mfr # 30E571
- Zoro # G5033962
Key Features
Specifications
Details
- MFR #
- 30E571
- Zoro #
- G5033962
- UPC #
- 190735612132
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Global Style High Flow
- Material
- Stainless Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Plain
- Max. Flow Rate
- 1,415.84 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 200 Degrees F
- Application
- Used on End of Hose or Air Supply
- Max. Working Pressure @ 70 F
- 400 psi
- Barbed
- No
- Valve Type
- Poppet
- For Use With
- Hi Flow Plug
- Connection Thread Type
- NPT
- Shell Material
- Stainless Steel
- Wire Color
- Silver
- Compatible Product Type
- Hi Flow Plug
- Traction Material
- Stainless Steel
Dimensions
- Hose Fitting Size
- 3/8 in
- Coupling Size
- 1/4 in
- Thread Size
- 3/8"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Description
The SPEEDAIRE - 30E571 is a quick connect hose coupling that enables push-to-connect locking for connection and disconnection without tools (per the push-to-connect locking mechanism description). It provides a seal at the connection as specified by the included Nitrile (Buna‐N) seal material. It provides a seal at the connection as specified by the included Nitrile (Buna‐N) seal material. Constructed from 304 stainless steel with a plain finish, this coupling includes an integrated poppet valve for controlling airflow and is compatible with Hi Flow plugs. It employs a push-to-connect locking mechanism and features a female hose fitting connection.
Key Features:
- Material: 304 Stainless Steel with a plain surface finish.
- Size: 1/4 in coupling size and body size; hose fitting size is 3/8 in.
- Connection Type: NPT thread with 3/8"-18 specification, female hose fitting.
- Coupling Component: Socket type with push-to-connect locking.
- Valve: Included poppet valve for flow control.
- Rated maximum flow rate: 1,415.84 LPM and rated maximum working pressure: 400 psi at 70°F.
- Seal Material: Nitrile (Buna-N) for pressure and sealing performance when connected using the specified seal material (Nitrile (Buna‐N)).
- Rated operating temperature range: -40°F to 200°F.
- Interchange Compatibility: Global Style High Flow interchange standard.
