Coupler Body, (M)NPT, 1/4,304 SS
- Mfr # 30E574
- Zoro # G4977655
Key Features
Specifications
Product Information
- MFR #
- 30E574
- Zoro #
- G4977655
- UPC #
- 190735612163
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Global Style High Flow
- Material
- Stainless Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Plain
- Max. Flow Rate
- 1,415.84 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 200 Degrees F
- Application
- Used on End of Hose or Air Supply
- For Use With
- Hi Flow Plug
- Barbed
- No
- Max. Working Pressure @ 70 F
- 400 psi
- Valve Type
- Poppet
- Connection Thread Type
- NPT
Description

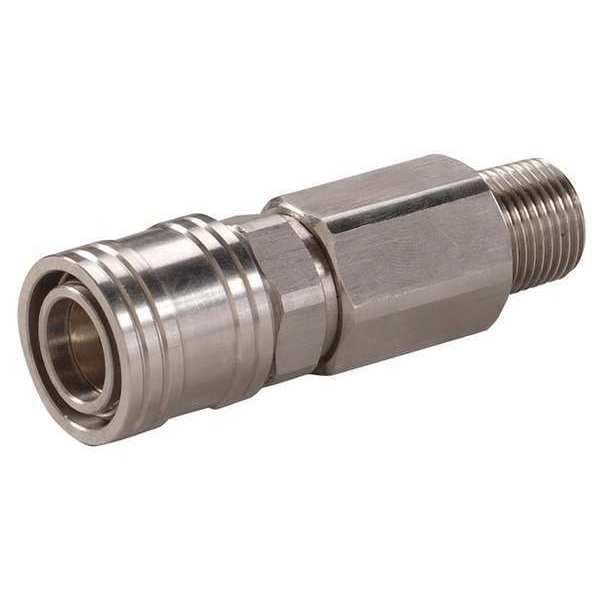

The SPEEDAIRE - 30E574 is a quick connect hose coupling designed for use on the end of a hose or air supply line. It enables push-to-connect locking for connection and disconnection without tools. Constructed from 304 stainless steel with a plain finish, this coupling is compatible with Global Style High Flow (Hi Flow) plug configurations and includes a poppet valve to control air or fluid flow. It is intended for use with compressed air and fluid transfer applications and provides a connection intended to help prevent air/fluid leakage when used with compatible fittings and within rated conditions, helping support quick changeovers between connected components.
Key Features:
- Body and coupling size: 1/4 in
- Hose fitting size and thread size: 1/4" -18, male gender
- Maximum working pressure: 400 psi @ 70°F
- Maximum flow rate: 1,415.84 liters per minute
- Seal material: Nitrile
- Temperature range: -40°F to 200°F
- Coupling component: Socket
- Coupling locking type: Push-to-Connect
- Interchange type: Global Style High Flow
- Includes poppet valve mechanism
