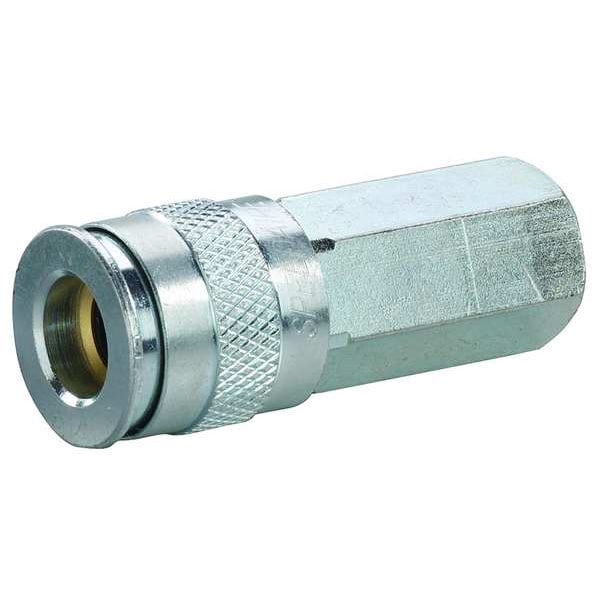

Coupler Body, (F)NPT, 3/8, Brass/Steel
Mfr # 30E726
Zoro # G4977691
Key Features
Specifications
Product Information
- MFR #
- 30E726
- Zoro #
- G4977691
- UPC #
- 190735613665
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 3/8 in
- Coupling Size
- 3/8 in
- Thread Size
- 3/8"-18
- Body Size - Quick Connect Air Couplings
- 3/8 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Universal
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Female
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 1,274.26 lpm
- Coupling Locking Type
- Push-to-Connect
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- Valve Type
- Poppet
- Barbed
- No
- For Use With
- ARO, Industrial or Automotive Coupler
- Max. Working Pressure @ 70 F
- 250 psi
- Compatible Brand
- ARO
- Connection Thread Type
- NPT
Description
The SPEEDAIRE - 30E726 is a quick connect hose coupling provides a push-to-connect locking mechanism for connection and disconnection without the use of tools. It is rated for connection to pneumatic/hydraulic/general fluid line systems using the specified thread and coupling size, intended to form a sealed connection using the specified nitrile seal and poppet valve; performance depends on installation and system conditions. The coupling includes an integrated poppet valve; flow is controlled through the integrated poppet valve and is constructed of zinc-plated steel.
Key Features:
- Body and coupling size: 3/8 in
- Connection type: 3/8"-18 NPT female thread
- Hose fitting gender: Female
- Coupling component: Socket
- Seal material: Nitrile
- Includes valve: Yes, type poppet
- Maximum flow rate: 1,274.26 liters per minute
- Maximum working pressure at 70°F: 250 psi
- Temperature range: -40°F to 150°F
- Finish: Zinc plated
- intended for use with couplers identified as interchangeable for the specified application (ARO, Industrial, or Automotive Coupler per listing)
