Coupler Body, (M)NPT, 3/8, Steel
Mfr # 30E745
Zoro # G4978285
Key Features
Specifications
Product Information
- MFR #
- 30E745
- Zoro #
- G4978285
- UPC #
- 190735613856
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 3/8 in
- Coupling Size
- 3/8 in
- Thread Size
- 3/8"-18
- Body Size - Quick Connect Air Couplings
- 3/8 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Tru-Flate-Automotive
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 1,274.26 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Tool Inlet
- For Use With
- Automotive Interchange Coupler
- Max. Working Pressure @ 70 F
- 300 psi
- Barbed
- No
- Valve Type
- Poppet
- Connection Thread Type
- NPT
Description

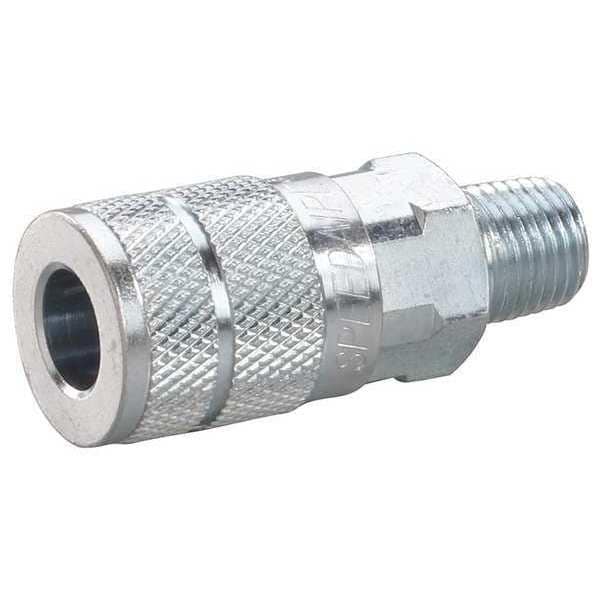

The SPEEDAIRE - 30E745 is a quick connect hose coupling that is configured for quick connection and disconnection without requiring additional tools for use on the end of a hose or tool inlet. It is intended to form a pressure-tight seal for fluid or air transfer when properly connected, for use in transferring fluids or air between compatible hoses/equipment. It is compatible with automotive-style interchange couplers (within the specified connection and size requirements). Constructed from steel with a zinc-plated finish, this coupling includes an integrated poppet valve for flow control and is rated for operation within -40°F to 150°F. It is for use on pneumatic, hydraulic, and general service lines with compatible connection specifications.
Key Features:
- Body and coupling size: 3/8 in, suitable for matching hose and equipment connections.
- Connection type: NPT thread with 3/8"-18 thread size, male hose fitting gender.
- Includes sleeve locking mechanism for secure attachment.
- Seal material: Nitrile for pressure-tight sealing.
- Maximum flow rate (as specified): 1,274.26 liters per minute.
- Maximum working pressure (as specified): 300 psi at 70°F
- Finish: Zinc plated for surface protection.
- Valve type: Poppet valve integrated into the coupling.
