Coupler Plug, (M)NPT, 1/4,304 SS
Mfr # 30E590
Zoro # G4869121
Key Features
Specifications
Product Information
- MFR #
- 30E590
- Zoro #
- G4869121
- UPC #
- 190735612323
- Country of Origin
- China
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 1/4 in
- Thread Size
- 1/4"
- Body Size - Quick Connect Air Couplings
- 1/4 in
Details
- Item
- Quick Connect Air Coupling
- Interchange Type
- Asian Style High Flow
- Material
- Stainless Steel
- Coupling Component
- Plug
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Seal Material
- HNBR
- Temp. Range
- -40 Degrees to 250 Degrees F
- Application
- Used on End of Hose or Tool Inlet
- Barbed
- No
- Max. Working Pressure @ 70 F
- 400 psi
- For Use With
- Hi Flow Coupler
- Connection Thread Type
- NPT
Description

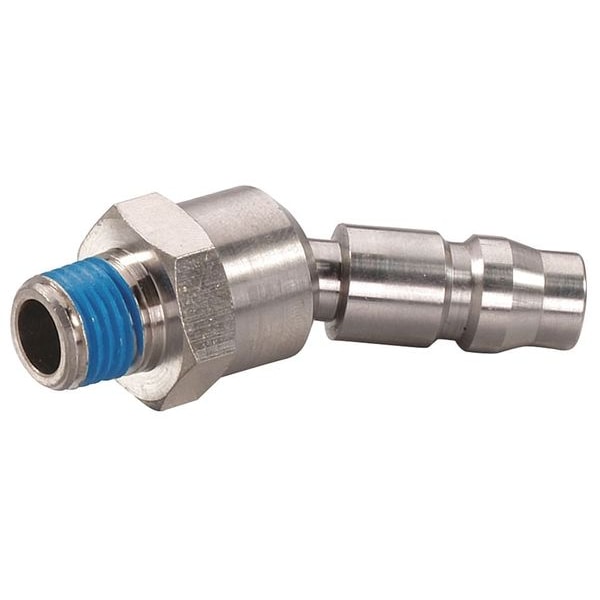

The SPEEDAIRE - 30E590 is a quick connect hose coupling for rapid hose/tool connection and disconnection without hand tools (as applicable to the specified coupling design). Constructed from 304 stainless steel; includes an HNBR seal and is rated for operation within the specified temperature range and working pressure. It features a male hose fitting with a 1/4 in size and uses an NPT thread connection. The product includes an HNBR seal and is rated maximum working pressure: 400 psi at 70°F. It operates within a temperature range of -40°F to 250°F and supports a maximum working pressure of 400 psi at 70°F. This coupling is compatible with Hi Flow couplers using the Asian Style High Flow interchange standard.
Key Features:
- Material: 304 stainless steel construction.
- Hose Fitting: Male, 1/4 in size with 1/4" NPT thread size.
- Coupling Type: Plug compatible with 1/4 in coupling size.
- Seal Material: HNBR providing fluid-tight sealing.
- Maximum Working Pressure: Rated maximum working pressure: 400 psi at 70°F.
- Operating Temperature Range: -40°F to 250°F.
- Interchange Standard: Asian Style High Flow.
- Application: Designed for use on end of hose or tool inlet.
- Barbed End: No.
