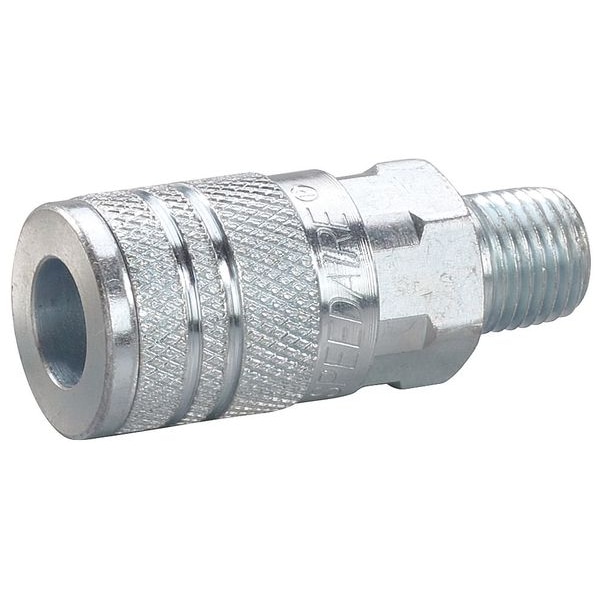

Coupler Body, (M)NPT, 3/8, Steel
- Mfr # 30E688
- Zoro # G4978084
Key Features
Specifications
Details
- MFR #
- 30E688
- Zoro #
- G4978084
- UPC #
- 190735613290
- Country of Origin
- China
- Item
- Quick Connect Air Coupling
- Interchange Type
- Industrial
- Material
- Steel
- Coupling Component
- Socket
- Hose Fitting Gender
- Male
- Connection Type
- Threaded
- Finish/Coating
- Zinc-Plated
- Max. Flow Rate
- 1,274.26 lpm
- Coupling Locking Type
- Sleeve
- Seal Material
- Nitrile
- Includes Valve
- Yes
- Color
- Silver
- Temp. Range
- -40 Degrees to 150 Degrees F
- Application
- Used on End of Hose or Air Supply
- Max. Working Pressure @ 70 F
- 300 psi
- For Use With
- Industrial Interchange Plug
- Valve Type
- Poppet
- Barbed
- No
- Connection Thread Type
- NPT
- Shell Material
- Steel
- Wire Color
- Silver
- Compatible Product Type
- Industrial Interchange Plug
- Traction Material
- Steel
Dimensions
- Hose Fitting Size
- 1/4 in
- Coupling Size
- 3/8 in
- Thread Size
- 1/4"-18
- Body Size - Quick Connect Air Couplings
- 3/8 in
Description
The SPEEDAIRE - 30E688 is for connection at the end of a hose or air supply. supports connection and disconnection without hand tools. uses a sleeve locking mechanism. is compatible with industrial interchange plug specifications. intended for pneumatic, hydraulic, and general fluid line service within its specified operating temperature and working pressure ranges. includes a poppet valve that opens and closes to regulate airflow when connected or disconnected. It features a steel body with zinc plating and includes a poppet valve that controls airflow when connected or disconnected.
Key Features:
- Body and coupling size: 3/8 in
- Hose fitting size: 1/4 in with male thread, 1/4"-18 thread size
- Connection type: NPT thread
- Finish: Zinc plated steel material
- rated working pressure: 300 psi at 70°F
- Seal material: Nitrile
- rated operating temperature range: -40°F to 150°F
- Valve included: Yes, poppet valve type
- Coupling component: Socket
- Coupling locking type: Sleeve
- Application: Used on end of hose or air supply
- For use with: Industrial interchange plug
