Shop SPEEDAIRE

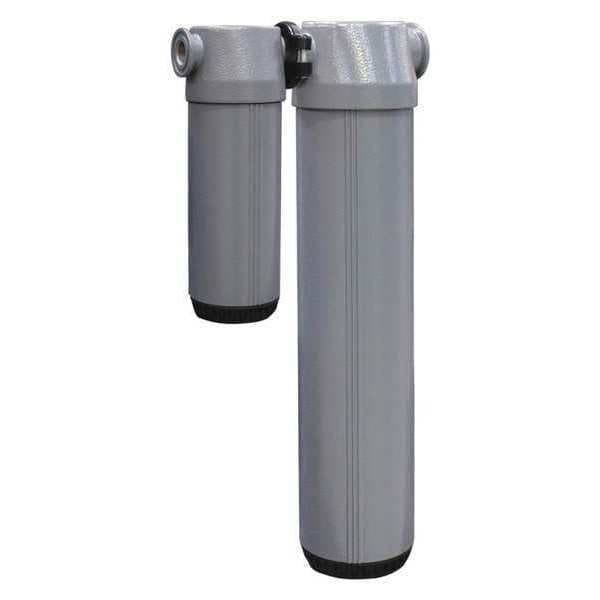

Desiccant Dryer, 5 cfm, 290 psi, 9" dia.

  • Mfr # CDD2-005

  • Zoro # G9870948

product price:  $797.99
/ea
Free Shipping & Returns

Key Features

ISO Class
2
Inlet/Outlet NPTF (In.)
1/4
Type
Dry Air
Max. Operating PSI
290
Overall Height
12 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CDD2-005
Zoro #
G9870948
UPC #
00194484303525
Country of Origin
Türkiye

Dimensions

Overall Height
12 in
Overall Width
8 13/16 in
Overall Depth
4 1/4 in
Dia. (In.)
9 in
Width (In.)
9 in
Connection Size - Air Treatment
1/4 in NPT
Bowl Size (Lb.)
2.5
Length (In.)
9 in
Height (In.)
12 in
Overall Length
11 13/16 in
Air Inlet Size
1/4 in
Outside Diameter
4 1/4 in
Air Outlet Size
1/4 in

Details

Item
Desiccant Air Dryer
ISO Class
2
Inlet/Outlet NPTF (In.)
1/4
Type
Dry Air
Max. Operating PSI
290
Dew Point
-40 Degrees F
Application
Compressed Air Dryer
Desiccant Material
Molecular Sieve
Max. Operating Temp. (F)
176 Degrees F
Total Capacity (Cu.-Ft.)
2500
Dew Point (Deg. F)
-40
Dew Point - Air Treatment
-40 Degrees F
Item - Desiccant Dryers
Desiccant Air Dryer
Element Material
Microglass
(F)NPT Inlet (In.)
1/4
Bowl
Aluminum
Max. Flow - Air Treatment
5 cfm
Total Capacity - Air Treatment
2,500 cu ft
CFM
5
Microns
15 micron
Max. Incoming Pressure - Air Treatment
290 psi
(M)NPT Outlet (In.)
1/4
ISO Class - Air Treatment
2
Max. SCFM @ 100 PSI
5
Maximum Operating Pressure
290 psi
Maximum Flow Rate
5 cfm
Total Air Capacity
2,500 cu ft
Bowl Capacity
2.5 lb
Filter Element Material
Microglass
Air Outlet Type
NPT
Standards
ISO
Filter Rating
15 micron
Bowl Material
Aluminum
Maximum Operating Temperature
176 Degrees F
Body Material
Aluminum
Filtered Substance
Moisture
Number of Air Inlets
1
Number of Stages
2
Minimum Operating Temperature
35 Degrees F
Maximum Flow @ 100 psi
5
Filter Included
Yes
Air Inlet Type
NPT
Number of Air Outlets
1
Filter Type
Particulate

Description

Desiccant Air Dryer, ISO Class 2, Air Inlet Size 1/4 in, Air Inlet Type NPT, Maximum Flow Rate 5 cfm, Overall Length 11 13/16 in, Overall Width 8 13/16 in, Maximum Flow @ 100 psi 5, Maximum Operating Pressure 290 psi, Minimum Operating Temperature 35 Degrees F, Dew Point -40 Degrees F, Filter Rating 15 micron, Filter Included Yes, Number of Stages 2, Air Outlet Size 1/4 in, Air Outlet Type NPT, Application Compressed Air Dryer, Body Material Aluminum, Bowl Capacity 2.5 lb, Bowl Material Aluminum
