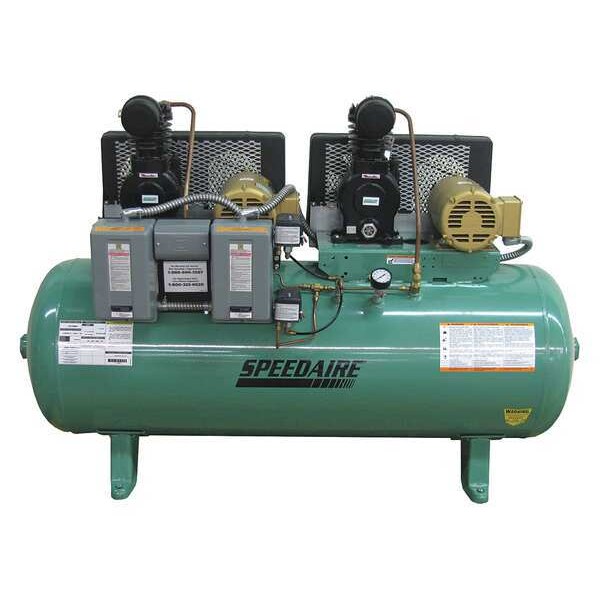

Electric Air Compressor, 3/4 HP

SPEEDAIRE| Zoro #: G0628065| Mfr #: 5Z698

$4,050.94 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G0628065 Mfr #: 5Z698
Item: Electric Air CompressorOff Pressure Switch Setting: 90
Control: Automatic Start/StopOn Pressure Switch Setting: 70
Enclosure: NEMATank Size: 30 gal.
Tank Type: HorizontalNumber of Stages: 1
Motor Type: Open DripproofLubrication Type: Pressure Lubricated
Standards: ULCompressor Package Type: Base Model
Overall Width: 21-1/4"Overall Height: 38"
Max. Pressure: 90 psi(F)NPT Outlet: 3/4"
ASME Tank: YesPump RPM: 980
Overall Length: 41-1/2"Phase: 3
HP: 3/4Free Air CFM @ Max. Pressure: 4.2
Pump Oil Capacity: 29.8 oz.Amps: 7.4-6.2/3.1
Compressor Type: Tank Mounted DuplexVoltage: 208-230/460
Country of Origin (subject to change): United States

Product Description

Electric Air Compressor, Compressor Type Tank Mounted Duplex, Number of Stages 1, Lubrication Type Pressure Lubricated, 3/4 HP, Max. Pressure 90 psi, Free Air CFM @ Max. Pressure 4.2, Voltage 208-230/460, 3 Phase, 7.4-6.2/3.1 Amps, Tank Size 30 gal., Tank Type Horizontal, Base Model, ASME Tank Yes, (F)NPT Outlet 3/4 In., Enclosure NEMA, Control Automatic Start/Stop, Motor Type Open Dripproof, Overall Length 41-1/2 In., Overall Width 21-1/4 In., Overall Height 38 In., Standards UL
