  11. Filter/Regulator, 12.90 In. H, 7.48 In. W
Shop All Filters & Regulators
Speedaire

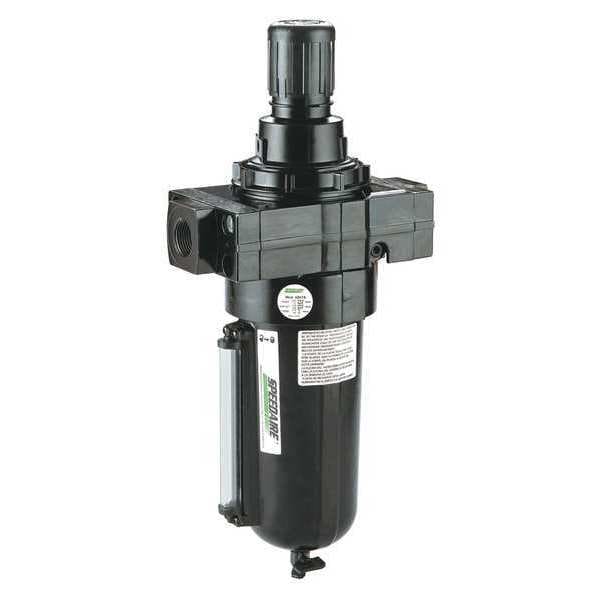

Filter/Regulator, 12.90 In. H, 7.48 In. W

product price: $213.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 3/4 in NPT
  • Filter Rating - Air Treatment 40 micron
  • Max. Incoming Pressure - Air Treatment 250 psi
  • Max. Flow - Air Treatment 509 cfm
  • Adjustment Range - Air Treatment 5 to 125 psi
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 3/4 in NPT
Size - Air Treatment Standard
Bowl Size - Air Treatment 32.0 oz
Overall Height 15.04 in
Pipe Size 3/4" NPT
Gauge Port Size 1/8 in NPT
Overall Width 7 1/2 in
Bowl Size 32.0 oz.
Air Outlet Size 3/4 in
Pressure Gauge Port Size 1/8 in
Air Inlet Size 3/4 in

Details

Item - Filter-Regulators Filter-Regulator
Filter Rating - Air Treatment 40 micron
Max. Incoming Pressure - Air Treatment 250 psi
Max. Flow - Air Treatment 509 cfm
Adjustment Range - Air Treatment 5 to 125 psi
Bowl Material - Air Treatment Metal with Sight Gauge
Max. Temp. 175 Degrees F
Max. Pressure 250 psi
Max. Flow 509 cfm
For Removal Of Particles, Water
Adjustment Knob Non Rising
Filter Rating 40 micron
Bowl Material Metal with Sight Gauge
Adjustment Range 5 to 125 psi
Item Filter-Regulator
Includes Metal Bowl
Drain Type Manual
Weight 3.7 kg
Modular Connection No Modular Connection
Air Outlet Type NPT
Pressure Gauge Port Type NPT
Sight Gauge Included No
Filter Bowl Material Metal
Air Outlet Gender Female
Maximum Flow Rate 509 cfm
Filter Bowl Capacity 32 oz
For Fluid Type Compressed Air
Filter Type Particulate
Filter Efficiency 95 %
Pressure Gauge Included No
Regulator Type Relieving
Minimum Operating Temperature 5 Degrees C
Seal Material Rubber
Body Material Aluminum
Series Heavy Duty
Filter Bowl Guard Included Yes
Air Inlet Type NPT
Minimum Regulated Pressure 5 psi
Differential Pressure Indicator Included No
Maximum Operating Temperature 175 Degrees F
Adjustment Location Top
Pressure Gauge Port Gender Female
Drain Part Compatibility 114X35
Air Inlet Gender Female
Minimum Operating Pressure 0.85 MPa
Filter Bowl Guard Material Aluminum
Number of Air Inlets 1
Filter Element Material PE
Duty Rating Heavy Duty
Maximum Operating Pressure 250 psi
Adjustment Mechanism Material Reinforced Nylon
Number of Air Outlets 1
For Substance Type Air
Air Flow Direction Left to Right
Adjustment Mechanism Knob
Drain Included Yes
Maximum Regulated Pressure 125 psi
Type Heavy Duty, Yoke Mount

Description

Filter-Regulator, Filter Bowl Material Metal with Sight Gauge, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 509 cfm, Filter Rating 40 micron, Filter Type Particulate, Maximum Operating Pressure 250 psi, Drain Type Manual, Pressure Gauge Included No, Body Material Aluminum, Overall Width 7 1/2 in, Series Heavy Duty, Adjustment Location Top, Adjustment Mechanism Knob, Adjustment Mechanism Material Reinforced Nylon, Air Flow Direction Left to Right, Air Inlet Gender Female
