Shop All Pneumatic Lubricators
Speedaire

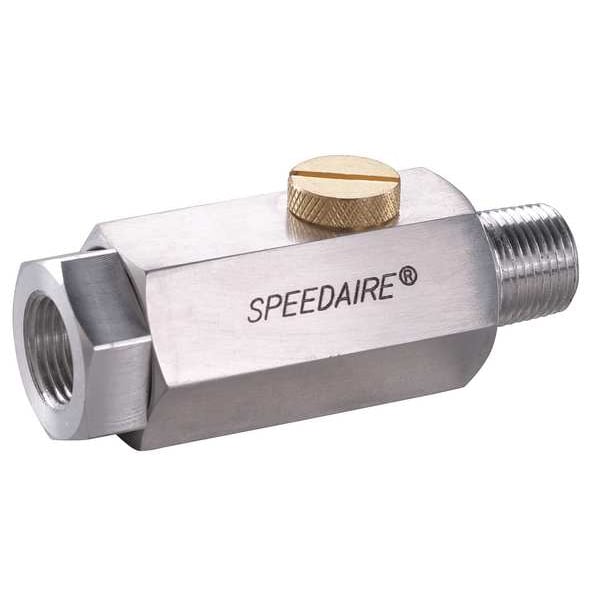

In Line Lubricator, 3/8In, 36 cfm, 200 psi

product price: $34.95
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Series 300
  • Pipe Size 3/8 in NPT
  • Max. Flow 36 cfm
  • Max. Pressure 200 psi
  • Overall Height 33.1 mm
See all product information

Product Information

Dimensions

Pipe Size 3/8 in NPT
Overall Height 33.1 mm
Overall Width 81.3 mm
Overall Length 3.0 in
Air Inlet Size 3/8 in
Overall Depth 28.6 mm
Air Outlet Size 3/8 in

Details

Item In-Line Compressed Air Lubricator
Series 300
Max. Flow 36 cfm
Max. Pressure 200 psi
Oil Capacity 0.25 oz
Body Material Aluminum
Max. Temp. 200 Degrees F
Adjustment Type Screwdriver
Lubricator Bowl Capacity 0.25 fl oz
Recommended Lubricant Air Compressor Oil
Lubricator Type Mist
For Fluid Type Compressed Air
Weight 99 g
Minimum Operating Pressure 30 psi
Adjustment Mechanism Screwdriver
Air Inlet Type NPT
Sight Gauge Included No
Air Outlet Type NPT
Number of Air Inlets 1
Lubricator Bowl Guard Included Yes
Lubricator Bowl Material Aluminum
System Location Air Line
Air Outlet Gender Male
Drain Type Automatic
Maximum Operating Pressure 200 psi
Duty Rating Light Duty
Minimum Operating Temperature -20 Degrees C
Air Flow Direction Left to Right
Seal Material Rubber
Lubricator Bowl Guard Material Rubber
Number of Air Outlets 1
Maximum Flow Rate 36 cfm
Drain Included No
Sight Dome Included No
For Substance Type Air
Air Inlet Gender Female
Modular Connection No Modular Connection
Maximum Operating Temperature 200 Degrees F
Includes Bowl and Guard
Material Aluminum
Type In-Line
Features Contains 1/4 Ounces Reservoir, No Adjustments to Tamper With

Description

In-Line Compressed Air Lubricator, Lubricator Type Mist, Lubricator Bowl Material Aluminum, Air Inlet Size 3/8 in, Air Inlet Type NPT, Maximum Flow Rate 36 cfm, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Adjustment Mechanism Screwdriver, Body Material Aluminum, Overall Width 81.3 mm, Series 300, Sight Dome Included No, Sight Gauge Included No, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Male, Air Outlet Size 3/8 in
