Speedaire

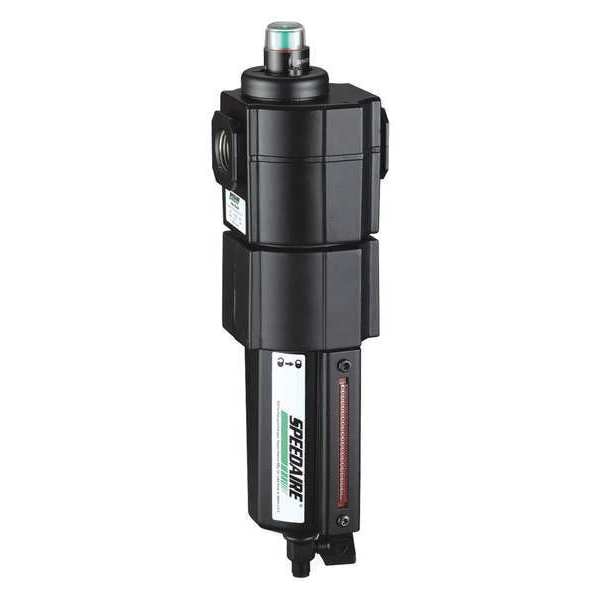

Pneumatic Oil Filter, 3/4 In. NPT, 60 cfm

original price: $125.36
14% off
new price: $106.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Connection Size - Air Treatment 3/4 in NPT
  • Size - Air Treatment Standard
  • Size Standard
  • Bowl Material Metal with Sight Glass
  • Overall Width 3 1/8 in
See all product information

Product Information

Dimensions

Connection Size - Air Treatment 3/4 in NPT
Size - Air Treatment Standard
Size Standard
Overall Width 3 1/8 in
Drain Port Size Will Fit 1/8-27 and 1/8-28 Pipe Thread
Overall Height 11 3/8 in
Bowl Size - Air Treatment 7.0 oz
Air Outlet Size 3/4 in
Air Inlet Size 3/4 in

Details

Item Pneumatic Oil Filter
Bowl Material Metal with Sight Glass
Item - Air Filters Oil Removal Filter
Bowl Material - Air Treatment Metal with Sight Glass
Drain Type Manual
Max. Flow - Air Treatment 60 cfm
Max. Incoming Pressure - Air Treatment 250 psi
Max. Temp. 150 Degrees F
For Removal Of Oil, Oil Odor, Oil Vapor, Particles, Water
Filter Rating 0.01 micron
Filter Rating - Air Treatment 0.01 micron
Series Standard Duty
Includes Bowl Guard
Type Modular
Weight 1.1 kg
Filter Bowl Material Metal
Air Outlet Type NPT
Air Inlet Gender Female
Minimum Operating Temperature 5 Degrees C
Maximum Flow Rate 60 cfm
Air Inlet Type NPT
Filter Bowl Guard Included Yes
Differential Pressure Indicator Included No
Sight Gauge Included No
Air Outlet Gender Female
Modular Connection No Modular Connection
Seal Material Rubber
Minimum Operating Pressure 1.7 MPa
Maximum Operating Pressure 250 psi
Filter Efficiency 99.3 %
Number of Air Outlets 1
Body Material Aluminum
Number of Air Inlets 1
Duty Rating Intermediate Duty
Drain Included Yes
Filter Type Coalescing
For Fluid Type Compressed Air
Filter Bowl Guard Material Aluminum
For Substance Type Air
Filter Bowl Capacity 7 oz
Maximum Operating Temperature 150 Degrees F
Air Flow Direction Left to Right
System Location Main Line
Gauge Included No

Description

Pneumatic Oil Filter, Filter Type Coalescing, Air Inlet Size 3/4 in, Air Inlet Type NPT, Maximum Flow Rate 60 cfm, Maximum Operating Pressure 250 psi, Maximum Operating Temperature 150 Degrees F, Overall Width 3 1/8 in, Overall Height 11 3/8 in, Drain Included Yes, Filter Bowl Material Metal, Drain Type Manual, Series Standard Duty, Differential Pressure Indicator Included No, Air Flow Direction Left to Right, Air Inlet Gender Female, Air Outlet Gender Female, Air Outlet Size 3/4 in
