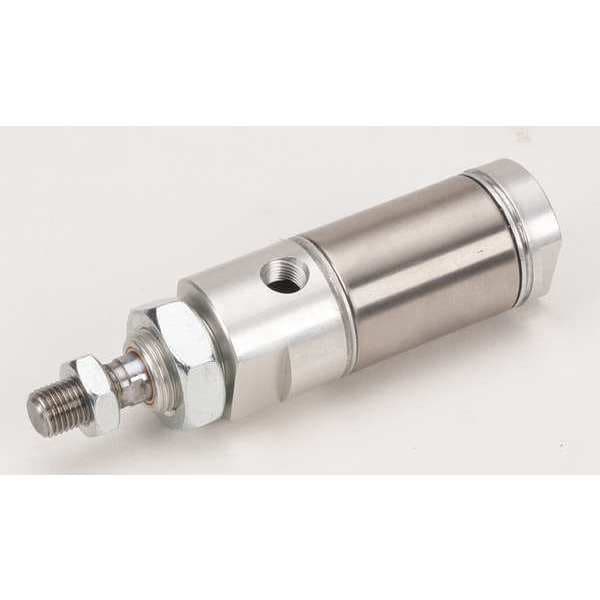

Round Body Cylinder, 1 1/16 in Bore, 7 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDMB106-0700
Zoro # G2758901
product price:Â $65.19
/eaKey Features
Cylinder Action
Double Acting
Bore Dia.
1 1/16 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.31 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
NCDMB106-0700
Zoro #
G2758901
UPC #
190735640319
Country of Origin
China
Dimensions
Bore Dia.
1 1/16 in
Rod Dia.
0.31 in
Overall Length
10.75 in
Rod Thread Length
1/2 in
Port Size
1/8 in NPT
Air Cylinder Bore Dia.
1 1/16 in
Rod Thread Size
5/16"-24
Dimension A
10 3/4 in
Dimension B
1.12 in
Dimension C
1/2 in
Rod Diameter
5/16 in
Nose Mount Thread Size
5/8"-18
Inlet Size
1/8 in
Stroke Length
7 in
Bore Diameter
1 1/16 in
Body Diameter
1 1/8 in
End Cap Length
1/4 in
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 1 1/16 in, Cushion Type None, Stroke Length 7 in, Inlet Size 1/8 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
Restrictions
Hazardous material
