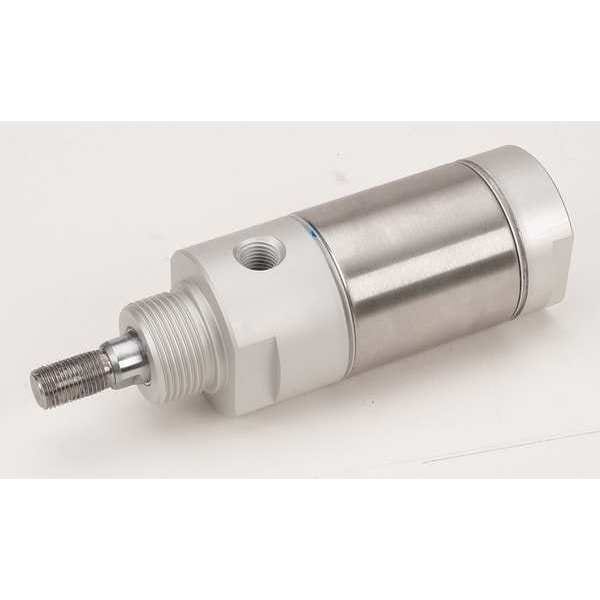

Round Body Cylinder, 2 in Bore, 5 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDMB200-0500
Zoro # G0757583
product price:Â $76.39
/ea
Free Shipping & Returns
Key Features
Cylinder Action
Double Acting
Bore Dia.
2 in
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.62 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
NCDMB200-0500
Zoro #
G0757583
UPC #
190735640654
Country of Origin
United States
Dimensions
Bore Dia.
2 in
Rod Dia.
0.62 in
Overall Length
10.57 in
Rod Thread Length
7/8 in
Port Size
1/4 in NPT
Dimension C
0.93 in
Dimension A
10 57/100 in
Rod Thread Size
1/2"-20
Air Cylinder Bore Dia.
2 in
Dimension B
2.06 in
Rod Diameter
5/8 in
Body Diameter
2 1/16 in
Nose Mount Thread Size
1 1/4"-12
End Cap Length
5/16 in
Inlet Size
1/4 in
Bore Diameter
2 in
Stroke Length
5 in
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 2 in, Cushion Type None, Stroke Length 5 in, Inlet Size 1/4 in, Air Inlet Type NPT, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Piston Rod Material Finish Chrome Plated, Mounting Location Front
