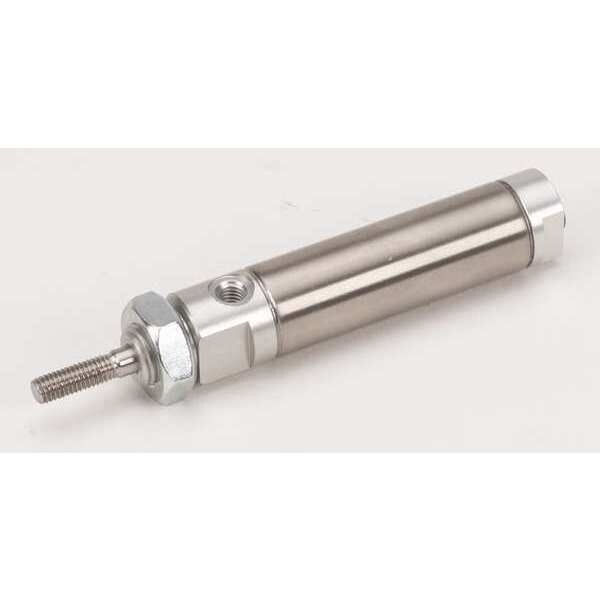

Round Body Cylinder, 9/16 in Bore, 5 in Stroke, Round Body Double Acting, Stainless Steel .
Mfr # NCDMB056-0500
Zoro # G0651901
product price:Â $35.79
/eaKey Features
Cylinder Action
Double Acting
Max. Pressure
250 psi
Body Material
Stainless Steel
Rod Dia.
0.197 in
Rod Thread Length
1/2 in
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
NCDMB056-0500
Zoro #
G0651901
UPC #
190735639931
Country of Origin
United States
Dimensions
Bore Dia.
9/16 in
Rod Dia.
0.197 in
Overall Length
7.69 in
Rod Thread Length
1/2 in
Port Size
#10-32 UNF
Dimension C
1/2 in
Dimension B
0.654 in
Dimension A
7 69/100 in
Rod Thread Size
#10-32
Air Cylinder Bore Dia.
9/16 in
Dimension E
10-32 UNF
Dimension D
7/16"-20 UNF
Stroke Length
5 in
Nose Mount Thread Size
7/16"-20
Bore Diameter
9/16 in
End Cap Length
3/16 in
Overall Width
1/2 in
Overall Height
1/2 in
Rod Diameter
3/16 in
Inlet Size
#10-32
Body Diameter
5/8 in
Description
Round Body Cylinder, Body Material Stainless Steel, Cylinder Type Round Body, Cylinder Repair Non-Repairable, Magnetic Piston Magnetic Piston, Mounting Type Nose, Bore Diameter 9/16 in, Cushion Type None, Stroke Length 5 in, Inlet Size #10-32, Air Inlet Type UN, Spring Retraction Force Not Applicable, Cylinder Action Double Acting, Number of Rods Single Rod, System of Measurement Inch, Body Material Finish Anodized, Mounting Location Front, Tie Rod Material Not Applicable
Restrictions
Hazardous material
