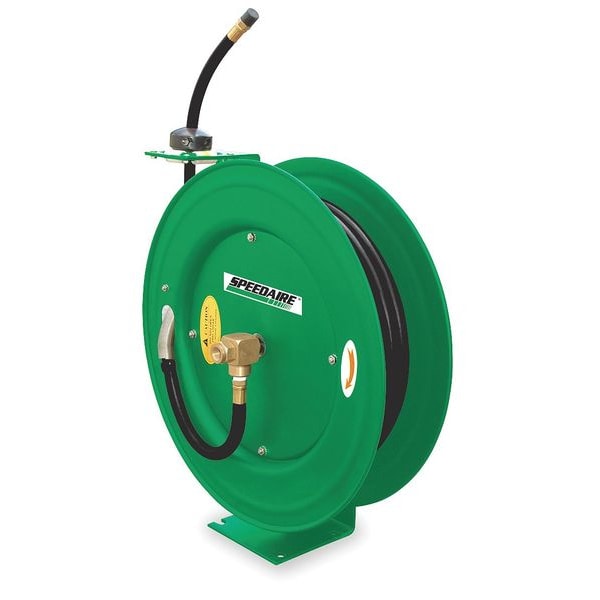

Speedaire Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass, Green 2CUA9 - main

Spring Return Hose Reel, 1/2 in Hose Diameter, 50 ft Length, 300 psi Max. Pressure, Brass, Green

  • Mfr # 2CUA9

  • Zoro # G2791372

product price:  $299.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose
Hose Inside Dia.
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2CUA9
Zoro #
G2791372
UPC #
190735610213
Country of Origin
China

Dimensions

Hose Inside Dia.
1/2 in
Overall Height
22 1/2 in
Hose Length
50 ft
Overall Width
7 in
Overall Length
19 5/16 in
Reel Diameter
19 5/16 in
Hose Outside Dia.
7/8 in
Reel Width
4 3/4 in
Height
22 1/2 in
Length
20 5/8 in
Swivel Outlet Thread Size
1/2 in
Hose Fitting B Size
1/2 in
Mount Base Width
5 29/32 in
Mount Hole Diameter
1/2 in
Hose Fitting A Size
1/2 in
Overall Dimensions
19 5/16 in L x 7 in W x 22 1/2 in H
Fitting Size
1/2 in x 1/2 in
Mounting Hole Center to Center Width
4 in
Swivel Inlet Thread Size
1/2 in
Mount Base Height
5 45/64 in
Mounting Hole Center to Center Height
5 in

Details

Item
Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose
Hose End Configuration
1/2 in MNPT
Hose Color
Black
Hose Material
Rubber
Mounting
Bench and Truck, Ceiling, Floor, Wall
Reel Color
Green
Media - Hose Reels
Air, Water
Swivel Material
Brass
Max. Temp.
210 Degrees F
Housing Material
Steel
Bearings
Permanently Lubricated
Finish - Hose Reels
Powder Coated
Reel Inlet
1/2 in (F)NPT
Latch
Locking
Seal Type
Nitrile
Hose Outlet
1/2 in (M)NPT
Duty Rating
Heavy Duty
Weight
39.82 lb
Maximum Operating Temperature
140 Degrees F
Maximum Operating Pressure
300 psi
Hose Fitting A Material
Brass
Includes Hose Stop
Yes
Minimum Operating Temperature
-4 Degrees F
Swivel Outlet Type
NPT
Hose Tube Material
Rubber
Hose Fitting A Gender
Male
Fitting Type
NPT x NPT
Spiral Hose Guard
No
Number of Mount Holes
4
Reel Finish
Powder Coated
Speed Limited Retraction
No
Swivel Outlet Gender
Female
Reel Material
Steel
Bearing Construction
Permanently Lubricated
Fasteners Included
No
Hose Fitting A Type
NPT
Hose Fitting B Gender
Male
Base Motion Type
Stationary
Number of Guide Arms
Single Arm
Hose Capacity
50 ft (1/2 in I.D.)
Latch Type
Locking
Hose Cover Material
Rubber
Corrosion-Resistant
Yes
Includes Hose
Yes
Includes Leader Hose
No
Swivel Inlet Type
NPT
Hose Fitting B Type
NPT
Swivel Inlet Gender
Female
Hose Reel Primary Application
Air, Water
For Dual Hose
No
Hose Reel Type
Wall Mount Hose Reel
Type
General Industrial, Low Pressure, Auto Retractable

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 50 ft (1/2 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 1/2 in, Hose Length 50 ft, Reel Material Steel, Mounting Location Ceiling, Floor, Wall, Speed Limited Retraction No, Overall Height 22 1/2 in, Overall Length 19 5/16 in, Overall Width 7 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Black, Hose Cover Material Rubber, Hose Fitting A Gender Male
