  11. Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Green

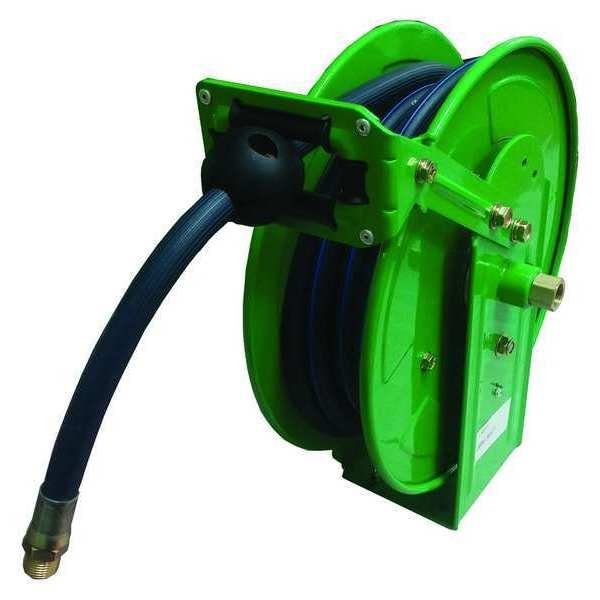

Speedaire Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Green 45UZ32 - main

Spring Return Hose Reel, 3/8 in Hose Diameter, 25 ft Length, 300 psi Max. Pressure, Brass, Green

  • Mfr # 45UZ32

  • Zoro # G4247190

product price: $165.99
/ea
Free Shipping & Returns

Key Features

Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose
Hose End Configuration
1/4 in MNPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
45UZ32
Zoro #
G4247190
UPC #
190735986318
Country of Origin
Korea, Republic of

Dimensions

Hose Inside Dia.
3/8 in
Overall Height
13 57/64 in
Hose Length
25 ft
Overall Width
6 39/64 in
Overall Length
12 19/32 in
Reel Diameter
12 5/8 in
Hose Outside Dia.
11/16 in
Reel Width
6 39/64 in
Fitting Size
1/4 in x 1/4 in
Mount Base Height
4 21/64 in
Swivel Inlet Size
3/8 in
Swivel Outlet Thread Size
1/4 in - 18
Swivel Outlet Size
1/4 in
Hose Fitting A Size
1/4 in
Mounting Hole Center to Center Height
25/32 in, 3 5/32 in
Overall Dimensions
12 19/32 in L x 6 39/64 in W x 13 57/64 in H
Mounting Hole Center to Center Width
2 23/64 in
Mount Hole Diameter
3/8 in
Mount Base Width
3 21/32 in
Hose Fitting B Size
1/4 in
Swivel Inlet Thread Size
3/8 in - 18

Details

Item
Spring Return Hose Reel
Max. Pressure
300 psi
Drive Type
Spring Return
Enclosed
No
Includes
Hose
Hose End Configuration
1/4 in MNPT
Hose Color
Dark Blue
Hose Material
PVC
Mounting
Bench and Truck, Ceiling, Floor, Wall
Reel Color
Green
Features
Heavy Duty
Media - Hose Reels
Air, Water
Application
Industrial
Swivel Material
Brass
Seal Type
Nitrile
Finish - Hose Reels
Powder Coated
Latch
Locking
Duty Rating
Heavy Duty
Housing Material
Steel
Max. Temp.
150 Degrees F
Bearings
Permanently Lubricated
Reel Inlet
3/8 in (F)NPT
Hose Outlet
1/4 in (M)NPT
Weight
17 lb
Fasteners Included
No
For Dual Hose
No
Hose Fitting A Gender
Male
Fitting Type
NPT x NPT
Reel Material
Steel
Hose Fitting A Material
Brass
Swivel Inlet Type
NPT
Number of Guide Arms
Single Arm
Swivel Outlet Type
NPT
Hose Tube Material
PVC
Corrosion-Resistant
Yes
Hose Reel Type
Bench, Ceiling, Floor, Vehicle, Wall Mount Hose Reel
Minimum Operating Temperature
21 Degrees F
Hose Reel Primary Application
Air, Water
Hose Fitting A Type
NPT
Hose Capacity
25 ft (3/8 in I.D.)
Maximum Operating Temperature
150 Degrees F
Base Motion Type
Stationary
Number of Mount Holes
6
Bearing Construction
Permanently Lubricated
Includes Leader Hose
No
Latch Type
Locking
Spiral Hose Guard
No
Swivel Outlet Gender
Male
Swivel Inlet Gender
Female
Pedestal Type
Single Pedestal
Hose Fitting B Gender
Male
Maximum Operating Pressure
300 psi
Includes Hose
Yes
Hose Fitting B Type
NPT
Hose Fitting B Material
Brass
Includes Hose Stop
Yes
Hose Cover Material
PVC

Description

Spring Return Hose Reel, Air, Water, 300 psi, Hose Capacity 25 ft (3/8 in I.D.), Drive Type Spring Return, Enclosed No, Includes Hose Yes, Hose Inside Dia. 3/8 in, Hose Length 25 ft, Reel Material Steel, Mounting Location Bench, Ceiling, Floor, Truck, Wall, Overall Height 13 57/64 in, Overall Length 12 19/32 in, Overall Width 6 39/64 in, Corrosion-Resistant Yes, For Dual Hose No, Hose Color Dark Blue, Hose Cover Material PVC, Hose Fitting A Gender Male
