  9. Straight Die Grinder, 1/4 in NPT Female Air Inlet, 3 mm, 1/8 in Collet, Medium Duty, 25,000 RPM
Shop All Air Grinders
Speedaire

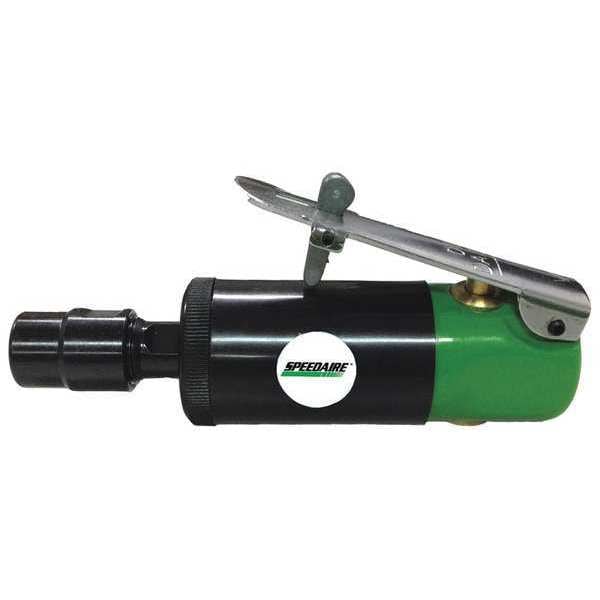

Straight Die Grinder, 1/4 in NPT Female Air Inlet, 3 mm, 1/8 in Collet, Medium Duty, 25,000 RPM

product price: $38.15
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Air Inlet 1/4 in NPT Female
  • Collet 3 mm, 1/8 in
  • Duty Medium Duty
  • Grinder Type Straight
  • Handle Material Aluminum
See all product information

Product Information

  • Brand Speedaire
  • MFR # 48LZ93
  • Zoro # G5234260
  • UPC #
    190735986448
  • Country of Origin Taiwan, Province of China
  • Category Air Grinders

Dimensions

Min. Hose Size 3/8 in
Overall Length 5 in
Right Angle Length 40 mm
Handle Length 80 mm
Maximum Mounted Point Diameter 1/4 in
Air Inlet Connection Size 1/4 in
Maximum Brushed Wheel Diameter 1/4 in
Collet Size 1/4 in, 1/8 in
Maximum Burr Diameter 1/4 in

Details

Item Die Grinder
Air Inlet 1/4 in NPT Female
Collet 3 mm, 1/8 in
Duty Medium Duty
Free Speed 25,000 RPM
Grinder Type Straight
Handle Material Aluminum
HP 0.2 hp
Includes 1/4 in Collet Insert Mfr. No. 50013
Required Pressure 90 psi
Throttle Lever
Variable Speed Yes
Grinder Orientation Straight
Bearing Type Double Shielded Ball
Exhaust Front
CFM @ Full Load 14.0
Average CFM @ 15 Second Run Time 3.5
Tool Weight 2.9 lb
Case Included Yes
Air Inlet Type NPT
Vibration Level 2 m/sq sec
Max. Speed 25,000 RPM
Kit Contents (1) Bare Tool
Anti-Vibration Technology No
Brake Type None
Dust Sealed Switch No
Horsepower 0.3 hp
Material Application Steel, Wood
Minimum Speed 25,000 RPM
Air Inlet Gender Female
Grip Style Barrel Grip
Lock-On Switch No
Tether Style Tether Included
Power Source Air Powered
Accessory Free Tool Change No
Tool Style Straight
Switch Type Safety Lever
Anti-Restart Technology No
Features Low-Profile Throttle Lever for Increased Comfort, Speed Governed to Maximize Productivity
Exhaust Location Front
Speed Ranges 0 to 25,000 RPM
Air Consumption 4 cfm
Number of Speed Settings Continuous
Switch Location Side
Lock-Off Switch Yes
Application Grinding
Anti-Kickback Clutch Type None
Safety Stop Mechanisms Mechanical Brake
Air Pressure 90 psi
Dust Management None

Description

Die Grinder, Duty Medium Duty, Horsepower 0.3 hp, Collet Size 1/4 in, 1/8 in, Grinder Orientation Straight, Air Inlet Connection Size 1/4 in, Air Inlet Gender Female, Max. Speed 25,000 RPM, Air Inlet Type NPT, Air Inlet 1/4 in NPT Female, Tool Style Straight, Kit Contents (1) Bare Tool, Includes 1/4 in Collet Insert Mfr. No. 50013, Case Included Yes, Grip Style Barrel Grip, Material Application Steel, Wood, Safety Stop Mechanisms Mechanical Brake, Anti-Restart Technology No
