Swivel Assembly, 3/8
Mfr # TT2CUA11G
Zoro # G2440910
Key Features
Specifications
Product Information
Dimensions
Details
Description

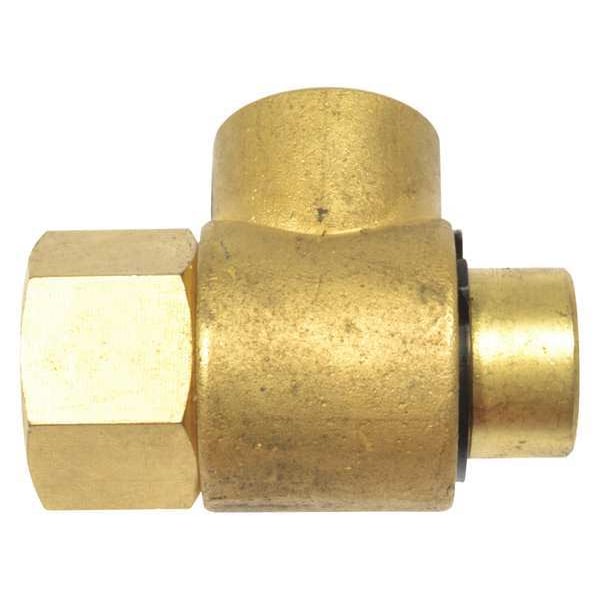

The SPEEDAIRE - TT2CUA11G is a 90-degree swivel designed for pneumatic systems. It includes nitrile seals for sealing between the inlet and outlet ports. It fits the Speedaire brand and is compatible with the 2CUA1 reel series and model number L805102. This swivel provides rotational movement between connected components. It is constructed from steel with an oxidized finish and includes nitrile seals to maintain sealing between connected ports. The inlet and outlet ports feature female NPT threads, with the inlet sized at 3/8 inch FNPT and the outlet at 1/4 inch FNPT.
Key Features:
- Angle: 90 degrees bend between connection faces for specific directional flow.
- Material: Steel construction with oxidized coating for surface treatment.
- Inlet: Female 3/8 in NPT thread with 3/8 in FNPT swivel connection.
- Outlet: Female 1/4 in NPT thread with 1/4 in FNPT swivel connection.
- Seals: Includes nitrile seal material for sealing performance.
- Operating Pressure Range: 0 psi minimum up to a maximum of 300 psi.
- Operating Temperature Range: From -4 Degrees F up to 140 Degrees F.
- Rated for compatibility with Speedaire brand 2CUA1 series reels, model L805102.
