Shop SPEEDAIRE

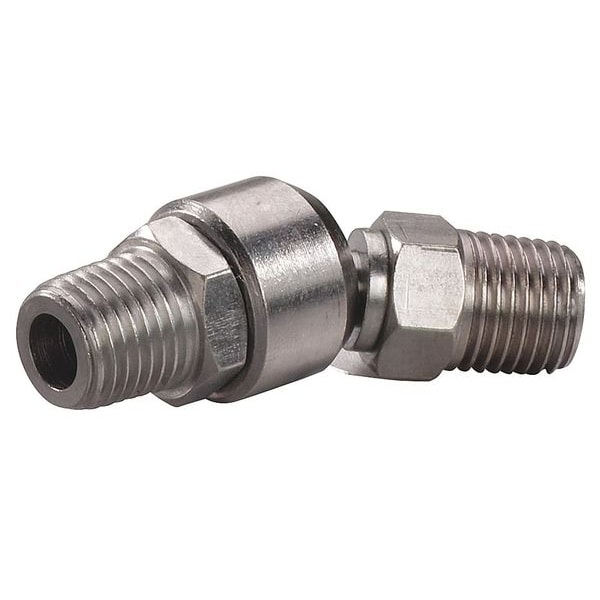

Swivel Connector, 1/4

  • Mfr # 30E593

  • Zoro # G4869103

product price:
$
6.15
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Material
Steel
Connection Type
(M)NPT
Finish/Coating
Chrome-Plated
Seal Material
NBR
Thread Size
1/4 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
30E593
Zoro #
G4869103
UPC #
190735612354
Country of Origin
China
Item
Swivel Connector
Material
Steel
Connection Type
(M)NPT
Finish/Coating
Chrome-Plated
Seal Material
NBR
Temp. Range
-20 Degrees to 150 Degrees F
Outlet
1/4 in NPT
Inlet
1/4 in NPT
Number of Pivot Points
1
Fitting Material Grade
Ml08
Swivel Angle
360 Degrees
Swivel Type
Ball-Joint
For Use On
Pneumatic Tools, Pneumatic Tubing Lines
Pivot Angle
25 Degrees
Outlet Connection Type
Threaded
Inlet Connection Type
Threaded
Inlet Connection Gender
Male
Maximum Operating Temperature
150 Degrees F
Includes Pre-Applied Thread Sealant
No
Outlet Connection Gender
Male
Minimum Operating Temperature
-20 Degrees F
Max. Working Pressure @ 70 F
150 psi
Operating Pressure - Maximum
150 psi
Fitting Material Finish
Chrome-Plated
Fitting Material
Steel
Outlet Connection Thread Type
NPT
Maximum Operating Pressure
150 psi

Description

The SPEEDAIRE - 30E593 is a swivel connector designed for use with pneumatic tools and tubing lines. It serves as a quick-connect hose fitting that allows the hose or attached tool to rotate freely relative to the fixed coupling. This rotation capability helps provide a 360° ball-joint swivel with a 25° pivot angle to allow relative rotation between the connected hose and coupling. The connector maintains an air-tight connection when installed using compatible fittings and rated within a maximum working pressure of 150 psi at 70°F within a temperature range of -20°F to 150°F.

Key Features:

  • Body size and thread size: 1/4"
  • Connection type: Male NPT inlet and outlet, both 1/4" NPT
  • Material: Steel body with chrome-plated finish
  • Seal material: NBR (nitrile rubber)
  • Swivel type: 360° ball-joint swivel with one pivot point and a 25° pivot angle
  • Overall length: 2.20 inches
  • Maximum working pressure at 70°F: 150 psi
  • Temperature rating: -20°F to 150°F operating range
