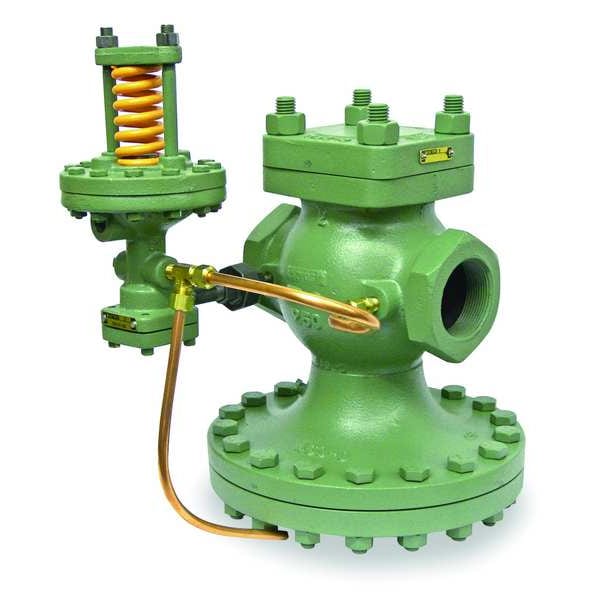

Pressure Regulator, 1 In, 10 to 100 psi
Mfr # E-C1E9A1B1AM1
Zoro # G1922934
product price:Â
$
1,979.99
/ea
Free Shipping & Returns
Key Features
Series
E
Body Material
Cast Iron
Inlet Size
1 in
Outlet Size
1 in
Length
5 3/8 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- E-C1E9A1B1AM1
- Zoro #
- G1922934
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Inlet Size
- 1 in
- Outlet Size
- 1 in
- Length
- 5 3/8 in
- Height
- 13 5/8 in
- Pipe Size
- 1 in
- Overall Width
- 5 3/8 in
- Overall Height
- 13 5/8 in
- Inlet Connection Size
- 1 in
- Outlet Connection Size
- 1 in
Details
- Item
- Pilot-Operated Pressure Regulator
- Series
- E
- Body Material
- Cast Iron
- Max. Pressure
- 250 psi
- Pressure Adjustment Range
- 10 to 100 psi
- Max. Temp.
- 450 Degrees F
- Standards
- ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff
- For Media
- Gas, Vapor
- Operating Pressure - Maximum
- 250 psi
- Operating Pressure Differential - Minimum
- 10 psi
- Operating Temperature - Maximum
- 450 Degrees F
- Pilot Adjustment - Maximum
- 100 psi
- Pilot Adjustment - Minimum
- 10 psi
- Inlet Connection Type
- NPT
- Outlet Connection Type
- NPT
Description
Pilot-Operated Pressure Regulator, Series E, Body Material Cast Iron, Inlet Size 1 in, Outlet Size 1 in, Length 5 3/8 in, Height 13 5/8 in, Pressure Adjustment Range 10 to 100 psi, Max. Temp. 450 Degrees F, Pipe Size 1 in, Max. Pressure 250 psi, Standards ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff
