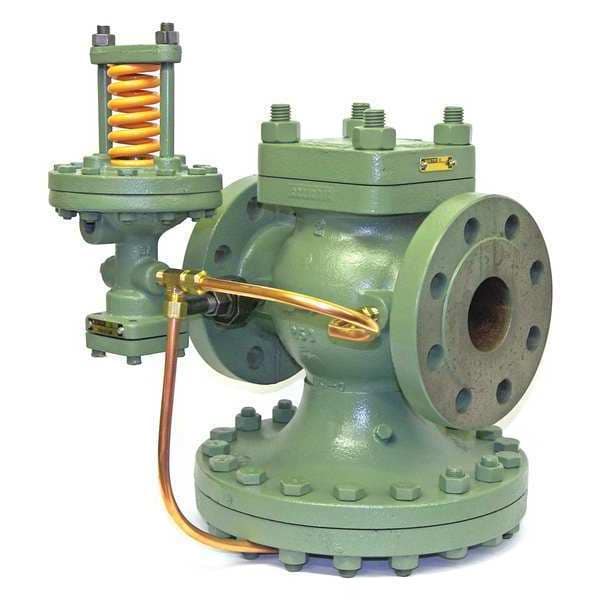

Pressure Regulator, 20/150 psi, 11-3/4in L
Mfr # E-C1K3A1B1AN1
Zoro # G5574865
product price:Â
$
6,096.99
/ea
Additional $200.00 delivery surcharge applies per item.
Key Features
Series
ED
Body Material
Cast Iron
Inlet Size
3 in
Outlet Size
3 in
Length
11 3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- E-C1K3A1B1AN1
- Zoro #
- G5574865
- UPC #
- -
- Country of Origin
- United States
- Item
- Pressure Regulator
- Series
- ED
- Body Material
- Cast Iron
- Includes
- Pressure Pilot, Single Seat Main Valve
- Max. Temp.
- 450 Degrees F
- Seal Material
- EPDM, Buna-N
- Standards
- ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff
- Pressure Adjustment Range
- 20 to 150 psi
- Application
- Steam, District Heating Systems
- Max. Pressure
- 250 psi
- Connection Type
- Flanged
- Pilot Adjustment - Minimum
- 20 psi
- Inlet Connection Type
- 250 Flange
- Outlet Connection Type
- 250 Flange
- Operating Pressure Differential - Minimum
- 10 psi
- For Media
- Gas, Vapor
- Pilot Adjustment - Maximum
- 150 psi
- Operating Temperature - Maximum
- 450 Degrees F
- Operating Pressure - Maximum
- 250 psi
Description
Pressure Regulator, Series ED, Body Material Cast Iron, Inlet Size 3 in, Outlet Size 3 in, Length 11 3/4 in, Height 16 in, Application Steam, District Heating Systems, Connection Type Flanged, Pressure Adjustment Range 20 to 150 psi, Gauge Port Size 1/4 in, Seal Material EPDM, Buna-N, Max. Temp. 450 Degrees F, Pipe Size 3 in, Max. Pressure 250 psi, Standards ANSI/FCI 70-2 Class IV Shutoff, FCI 70-3 Class VI Shutoff, Includes Pressure Pilot, Single Seat Main Valve
