  13. 120VAC Electrically Held Lighting Contactor 12P 30A
Shop All Lighting Contactors
Square D

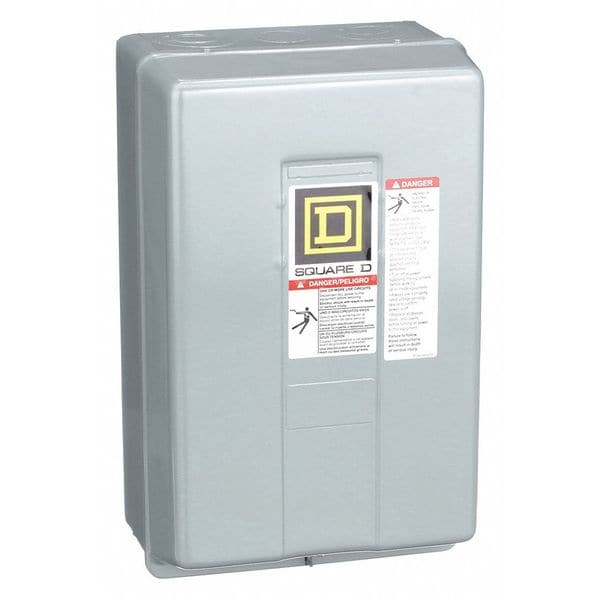

120VAC Electrically Held Lighting Contactor 12P 30A

product price: $1,167.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contactor Type Electrically Held
  • Full Load Amps 30 A
  • Number of Poles 12
  • Coil Volts 120V AC
  • Height 12.69 in
See all product information

Product Information

Dimensions

Height 12.69 in
Width 7.81 in
Depth 6.03 in
Overall Depth 6.02 in
Frame Size L
Mounting Hole Distance - Width 5.63 in
Mounting Hole Distance - Height 10.5 in
Overall Width 7.8 in
Overall Height 12.68 in

Details

Item Lighting Magnetic Contactor
Contactor Type Electrically Held
Full Load Amps 30 A
Number of Poles 12
Coil Volts 120V AC
Enclosure NEMA Rating 1
Hz 50/60
Standards CSA, REACH, RoHS, UL Listed
Current Rating 20-20 A tungsten; 30-30 A fluorescent
Inrush VA 180-180 VA 60 Hz; 170-170 VA 50 Hz
Control Type No control units
Features Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Control Circuit Separate control circuit
Indicator No
Electrical Connections Screw-clamp terminals
Series 8903 Series Type L
Tungsten Lighting Current Rating 20 A
Full Load Current - Resistive 30 A
Fluorescent Lighting Current Rating 30 A
Maximum Voltage Rating 600V AC
Contactor Style Electrically Held Lighting Contactor
LED Lighting Current Rating 16 A
Terminal Connection Type Screw Clamp Terminals
Frequency 50/60 Hz
NEMA Enclosure Material Steel
Number of Normally Open Main Contacts 12
Coil Voltage 110/120V AC
NEMA Enclosure Rating 1
Mounting Style Surface
Phase Three
Reversing Capability Non-Reversing
Full Load Current - Inductive 30 A
Status Indicator No Indicator

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 16 A, Coil Voltage 110/120V AC, Series 8903 Series Type L, Number of Poles 12, NEMA Enclosure Rating 1, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size L, Full Load Current - Resistive 30 A, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC, Phase Three, Overall Height 12.68 in, Overall Width 7.8 in

Restrictions

  • Hazardous material
