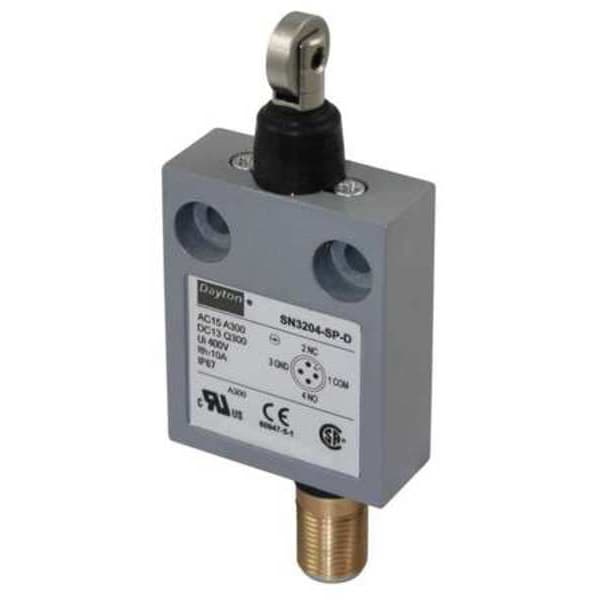

Limit Switch, Cross Roller, Plunger, SPDT, 10A at 300V AC, Actuator Location: Top

  • Mfr # 12T949

  • Zoro # G3929904

product price:
$
57.99
/ea

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
12T949
Zoro #
G3929904
UPC #
190735116821
Country of Origin
China
Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Cross Roller, Plunger
Contact Form- Switches
SPDT
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
10A at 300V
DC Contact Rating - Limit Switch
10A at 300V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Stem Thread - Limit Switch
No Stem
Basic Actuator Style (Limit Switch)
Plunger
Number of Poles
1
IP Rating
IP67
AC Contact Rating
10 A @ 300 V
Limit Switch Style
General Purpose Limit Switch
Contact Form - Limit Switch
SPDT
Operating Force
40 oz
Body Style (Limit Switch)
Miniature
Actuator Style (Limit Switch)
Plunger, Cross Roller
Boot Sealed Actuator - Limit Switch
Yes
Operating Temp. Range
-14 Degrees to 185 Degrees F
Voltage Rating
300VAC/DC
Wiring Entry
Connector
Mounting Hole - Limit Switch
(2) 0.20 in dia
Contact Form
SPDT
DC Contact Rating
10 A @ 300 V
Series
Dayton
Movement
Vertical
Actuator Style
Cross Roller Plunger
Travel
Maximum Pre-Travel N/A, Minimum Over-Travel N/A
NEMA Rating
12, 13, 4, 6, 6P
Boot Sealed Actuator (Limit Switch)
Yes
Actuator Location (Limit Switch)
Top
Mounting Hole Spacing - Limit Switch
0.98 in
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Actuator Location
Top
Standards
CE, CSA, UL Listed
Amps
10
Electrical Connection
4-Pin M12 Male Connector
Directional Movement
Linear
Mounting Hole Horizontal Center to Center Distance
25 mm
Number of Mounting Holes
2
Operating Temperature - Minimum
-14 Degrees F
Operating Temperature - Maximum
185 Degrees F
NEMA Enclosure Rating
12, 13, 4, 6, 6P
Operating Force - Maximum
40 ozf
Boot Sealed Actuator
Boot Included
Action
A
Mounting Style
Surface

Description

Limit Switch, Actuator Style - Limit Switch Cross Roller, Plunger, Actuator Location - Limit Switch Top, AC Contact Rating - Limit Switch 10A @ 300V, DC Contact Rating - Limit Switch 10A @ 300V, Contact Form- Switches SPDT, Body Height - Limit Switch 1.97 in, Body Width - Limit Switch 1.57 in, Body Depth - Limit Switch 0.63 in, Boot Sealed Actuator - Limit Switch Yes, Body Style - Limit Switch Miniature, NEMA Rating 12, 13, 4, 6, 6P, Mounting - Limit Switch Surface
