  13. 120VAC Electrically Held Lighting Contactor 2P 30A
Shop All Lighting Contactors
Square D

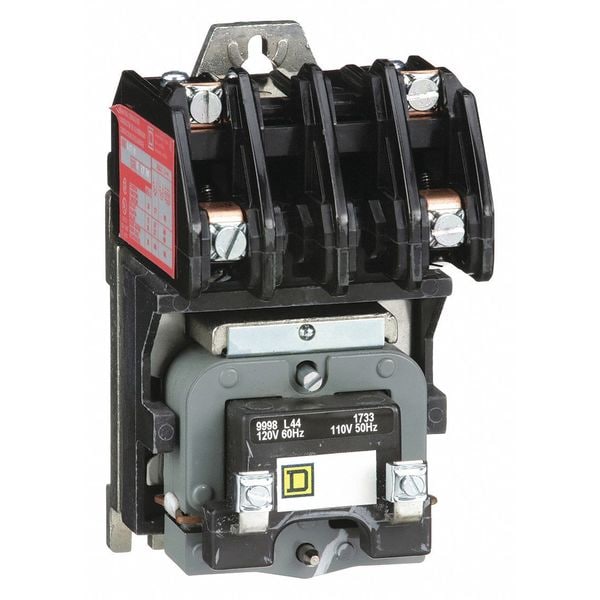

120VAC Electrically Held Lighting Contactor 2P 30A

product price: $350.00
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Contactor Type Electrically Held
  • Full Load Amps 30 A
  • Number of Poles 2
  • Coil Volts 120V AC
  • Height 5.0 in
See all product information

Product Information

Dimensions

Height 5.0 in
Width 2.88 in
Depth 3.12 in
Frame Size L
Overall Width 2.87 in
Overall Height 5 in
Overall Depth 3.11 in

Details

Item Electrically Held Lighting Contactor
Contactor Type Electrically Held
Full Load Amps 30 A
Number of Poles 2
Coil Volts 120V AC
Enclosure NEMA Rating No Enclosure
Hz 50/60
Standards CSA, REACH, RoHS, UL Listed
Electrical Connections Screw-clamp terminals
Features Halogen free plastic parts product; Mercury Free; PVC Free; Green Premium product; Toxic Heavy Metal Free
Indicator No
Inrush VA 150-150 VA 60 Hz; 140-140 VA 50 Hz
Control Type No control units
Current Rating 20-20 A tungsten; 30-30 A fluorescent
Control Circuit Separate control circuit
Series 8903 Series Type L
Number of Normally Open Main Contacts 2
Status Indicator No Indicator
Fluorescent Lighting Current Rating 30 A
Frequency 50/60 Hz
Contactor Style Electrically Held Lighting Contactor
Terminal Connection Type Screw Clamp Terminals
Full Load Current - Resistive 30 A
Phase Three
Coil Voltage 110/120V AC
Reversing Capability Non-Reversing
Full Load Current - Inductive 30 A
NEMA Enclosure Rating No Enclosure
LED Lighting Current Rating 16 A
Maximum Voltage Rating 600V AC
Tungsten Lighting Current Rating 20 A

Description

Lighting Magnetic Contactor, LED Lighting Current Rating 16 A, Coil Voltage 110/120V AC, Series 8903 Series Type L, Number of Poles 2, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating 20 A, Fluorescent Lighting Current Rating 30 A, Reversing Capability Non-Reversing, Frame Size L, Full Load Current - Resistive 30 A, Full Load Current - Inductive 30 A, Maximum Voltage Rating 600V AC, Phase Three, Overall Height 5 in, Overall Width 2.87 in
