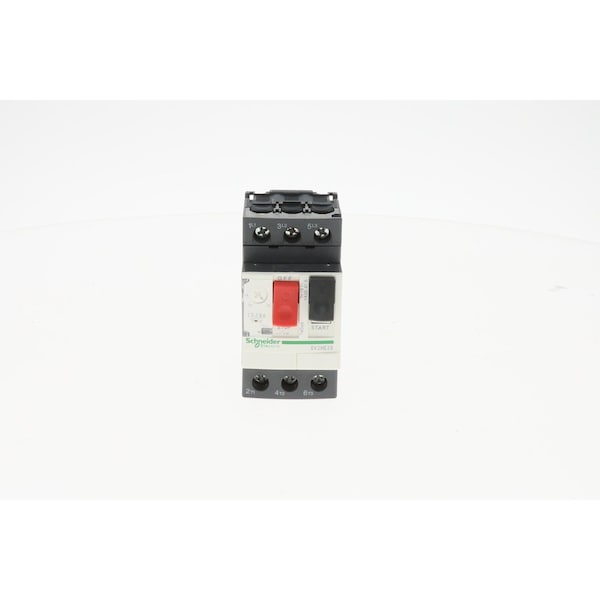

Square D 13-18AMP MOTOR STARTER GV2ME20 - main

13-18AMP MOTOR STARTER

  • Mfr # GV2ME20

  • Zoro # G710065716

product price: $200.99
/ea
Free Shipping & Returns

Key Features

Color
Dark Gray
Width
1.77 in (45 mm)
Standards
EN/IEC 60947-2; EN/IEC 60947-4-1
Height
3.50 in (89 mm)
Depth
3.09 in (78.5 mm)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
GV2ME20
Zoro #
G710065716
UPC #
-
Country of Origin
France

Dimensions

Width
1.77 in (45 mm)
Height
3.50 in (89 mm)
Depth
3.09 in (78.5 mm)

Details

Color
Dark Gray
Standards
EN/IEC 60947-2; EN/IEC 60947-4-1
Product Or Component Type
Motor circuit breaker
Product Name
TeSys GV2; TeSys Deca
Trip Unit Technology
Thermal-magnetic
Rated Impulse Withstand Voltage
6 kV IEC 60947-2
Phase Failure Sensitivity
Yes IEC 60947-4-1
Operating Altitude
6561.68 ft (2000 m)
Climatic Withstand
IACS E10
Control Type
Push-button
Magnetic Tripping Current
223 A
Tightening Torque
15.05 lbf.in (1.7 N.m) screw clamp terminal
Product Certifications
CCC; UL; CSA; EAC; ATEX; LROS (Lloyds register of shipping); BV; RINA; DNV-GL; UKCA
IP Degree Of Protection
IP20 IEC 60529
Line Rated Current
18 A
Ambient Air Temperature For Operation
-4 to 140°F (-20 to 60°C)
Motor Power KW
7.5 kW 400/415 V AC 50/60 Hz; 9 kW 500 V AC 50/60 Hz; 15 kW 690 V AC 50/60 Hz
Breaking Capacity
100 kA Icu 230/240 V AC 50/60 Hz IEC 60947-2; 15 kA Icu 400/415 V AC 50/60 Hz IEC 60947-2; 8 kA Icu 440 V AC 50/60 Hz IEC 60947-2; 6 kA Icu 500 V AC 50/60 Hz IEC 60947-2; 3 kA Icu 690 V AC 50/60 Hz IEC 60947-2
Fire Resistance
1760°F (960°C) IEC 60695-2-11
Suitability For Isolation
Yes IEC 60947-1 § 7-1-6
IK Degree Of Protection
IK04
Rated Operational Voltage
690 V AC 50/60 Hz IEC 60947-2
Utilisation Category
Category A IEC 60947-2; AC-3 IEC 60947-4-1; AC-3e IEC 60947-4-1
Electrical Durability
100000 cycles AC-3 415 V In; 100000 cycles AC-3e 415 V In
Thermal Protection Adjustment Range
13 to 18 A IEC 60947-4-1
Rated Duty
Continuous IEC 60947-4-1
Rated Service Short-Circuit Breaking Capacity
100% 230/240 V AC 50/60 Hz IEC 60947-2; 50% 400/415 V AC 50/60 Hz IEC 60947-2; 50% 440 V AC 50/60 Hz IEC 60947-2; 75% 500 V AC 50/60 Hz IEC 60947-2; 75% 690 V AC 50/60 Hz IEC 60947-2
Mechanical Durability
100000 cycles
Ambient Air Temperature For Storage
-40 to 176°F (-40 to 80°C)
Mechanical Robustness
Shocks 30 Gn for 11 ms; Vibrations 5 Gn, 5 to 150 Hz
Rated Insulation Voltage
690 V AC 50/60 Hz IEC 60947-2
Network Type
AC
Fixing Mode
35 mm symmetrical DIN rail clipped; Panel screwed with adaptor plate)
Power Dissipation Per Pole
2.5 W
Conventional Free Air Thermal Current
18 A IEC 60947-4-1
Device Application
Motor protection
Network Frequency
50/60 Hz IEC 60947-4-1
Poles Description
3P

Description

The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2ME controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by push buttons. The Class 10 ambient compensated thermal over current is adjustable from 13 ampere to 18 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
