  15. 2NO Yellow Pendant Control Station

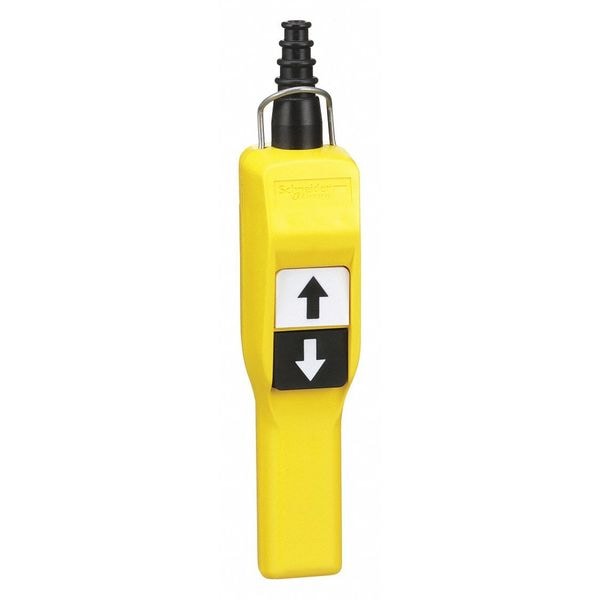

Square D 2NO Yellow Pendant Control Station XACA201 - main

2NO Yellow Pendant Control Station

  • Mfr # XACA201

  • Zoro # G2150933

product price: $115.99
/ea
Free Shipping & Returns

Key Features

Contact Form
2NO
Legend
Up/Down
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
XACA201
Zoro #
G2150933
UPC #
785901645009
Country of Origin
France

Dimensions

Height
4.33 in
Width
2.76 in
Depth
3.27 in
Hub Size - Maximum
9/16 in
Manufacturer Warranty Length
18 mo
Overall Width
2.05 in
Overall Depth
2.8 in
Overall Height
11.61 in

Details

Item
Pendant Control Station
Contact Form
2NO
Legend
Up/Down
Type of Operator
Push Button
Number of Pilot Lights
0
Number of Operators
2
NEMA Rating
4, 4X, 5
Series
XACA
Hub Style
Dead-End
Contact Rating
10A @ 600V AC/DC
Housing Color
Yellow
Standards
CSA, UL Listed
Action
Momentary/Momentary
Mechanical Interlock
Yes
Hub
1/2"-14 NPT
Number of Speeds
1
IP Rating
IP65
Housing Material
Polypropylene
NEMA Contact Rating Designation
A600/Q600
Voltage
600 V
Operator Color
Black, White
Enclosure Material
Plastic
Enclosure Color
Yellow
Product Type
Pendant Control Station
Cable Entry
rubber sleeve with stepped entry 7-15 mm
Application
control of single speed hoist motor
Terminal Connection
screw clamp terminal
Terminal Identifier
(11-12)NC; (13-14)NO
Conventional Enclosed Thermal Current
10 A
Rated Insulation Voltage
600 V 3)IEC 60947-1
Mechanical Durability
1000000 cycles
Connections - Terminals
Screw clamp terminals, 1 x 2.5 mm² with or without cable end; Screw clamp terminals, 2 x 1.5 mm² with or without cable end
Protective Treatment
TH
Rated Operational Power in W
40 W DC-13 1000000 cycles 60 cyc/mn 120 V 0.5 inductive IEC 60947-5-1 appendix C; 48 W DC-13 1000000 cycles 60 cyc/mn 48 V 0.5 inductive IEC 60947-5-1 appendix C; 65 W DC-13 1000000 cycles 60 cyc/mn 24 V 0.5 inductive IEC 60947-5-1 appendix C
Vibration Resistance
15 gn 10 to 500 Hz)IEC 60068-2-6
Control Station Composition
2 push-buttons
Overvoltage Category
Class II IEC 61140
Ambient Air Temperature For Operation
-13 to 158°F (-25 to 70°C)
Contact Code Designation
A600 AC-15, Ue = 240 V, Ie = 3 A IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A IEC 60947-5-1 appendix A
Product Certifications
CSA; UL
Product Compatibility
ZB2BE101 for each direction
IP Degree Of Protection
IP65 conforming to IEC 60529
Control Button Type
First push-button 1 NO raise, slow; Second push-button 1 NO lower, slow
Terminals Description ISO n°1
(13-14)NO
Enclosure Type
Complete ready for use
Control Station Type
Double insulated
Product Or Component Type
Pendant control station
Electrical Circuit Type
Control circuit
Maximum Resistance Across Terminals
25 MOhm
Ambient Air Temperature For Storage
-40 to 158°F (-40 to 70°C)
Short-Circuit Protection
10 A fuse protection cartridge gG
Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Operating Force
13 to 15 N
Contact Operation
Slow-break
Shock Resistance
100 gn IEC 60068-2-27
Mechanical Interlocking
With mechanical interlocking
Control Type
Intuitive
IK Degree Of Protection
IK08 EN 50102
Terminals Description ISO n°1
(13-14)NO
Resistance Properties
Impact Resistant
NEMA Enclosure Rating
1, 4, 4X, 5
Hazardous Location Specification
Not Rated
Operator Configuration
(2) Push Buttons
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
1.2 A @ 600 V, 3 A @ 250 V
DC Contact Rating
0.1 A @ 600 V, 0.27 A @ 250 V
Operating Temperature - Minimum
-13 Degrees F
Includes Mechanical Interlock
Mechanical Interlock Included

Description

Pendant Control Station, Number of Operators 2, Number of Pilot Lights 0, Legend Up/Down, Type of Operator Push Button, Action Momentary/Momentary, Operator Color Black, White, Contact Form 2NO, Mechanical Interlock Yes, NEMA Rating 4, 4X, 5, Contact Rating 10A @ 600V AC/DC, NEMA Contact Rating Designation A600/Q600, IP Rating IP65, Hub 1/2 In.-14 NPT, Height 4.33 in, Width 2.76 in, Depth 3.27 in, Enclosure Material Plastic, Enclosure Color Yellow, Standards CSA, UL Listed
