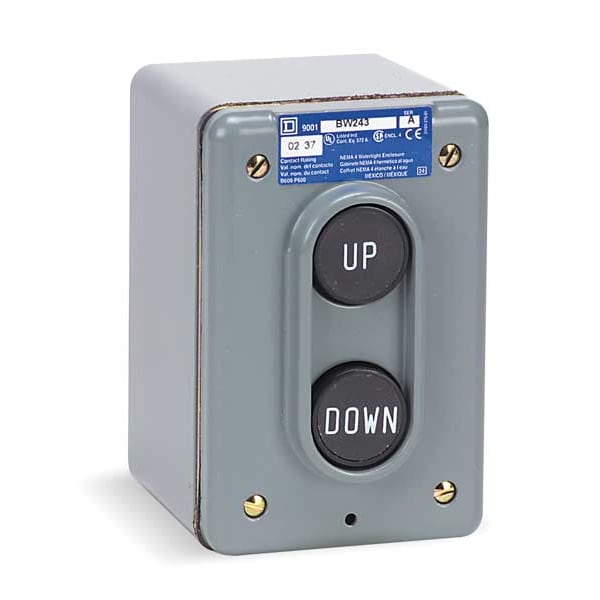

Square D Push Button Control Station, 2NO, Up/Down 9001BW243 - main

Push Button Control Station, 2NO, Up/Down

  • Mfr # 9001BW243

  • Zoro # G1260375

product price:  $250.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Legend
Up/Down
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
2NO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001BW243
Zoro #
G1260375
UPC #
785901794257
Country of Origin
Mexico

Dimensions

Size
30 mm
Manufacturer Warranty Length
18 mo
Overall Height
4.25 in
Hub Size - Maximum
1/2 in
Overall Width
2.76 in
Overall Depth
3.6 in

Details

Item
Control Station
Number of Gangs
1
Legend
Up/Down
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
2NO
Number of Operators
2
NEMA Rating
4
Hub Style
Dead-End
Series
9001
Contact Rating
5A @ 600V AC/24V DC
Standards
CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
For Use With
indoor/outdoor
Action
Momentary/Momentary
Mechanical Interlock
No
IP Rating
IP66
Mounting
Wall
Enclosure Material
Zinc
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Number of Speeds
1
Enclosure Color
Gray
Operator Color
(2) Black
Terminal Connection
screw clamp terminal
Mounting Style
Surface
Product Or Component Type
Complete control station
Rated Operational Current
5 A 600 V
Device Mounting
Surface
Product Certifications
CE; CSA LR25490 class 3211 03; UL listed file E42259 CCN NKCR
Contact Type and Composition
2 NO
NEMA Degree Of Protection
NEMA 4
Control Station Composition
2 push-buttons UP-DOWN
Environmental Characteristic
Dust and damp proof
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Includes Mechanical Interlock
No Mechanical Interlock Included.
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
Operator Configuration
(2) Push Buttons
Product Type
Control Station
Resistance Properties
Dust Resistant, Impact Resistant, Vibration Resistant, Waterproof
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Up/Down, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 2NO, Mechanical Interlock No, NEMA Rating 4, Contact Rating 5A @ 600V AC/24V DC, IP Rating IP66, Mounting Wall, Enclosure Material Zinc, Enclosure Color Gray, Standards CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
